Successful Water Well Drilling in Zimbabwe with MW600

The MW600 water well drilling rig is designed to meet the specific challenges of drilling in different terrains. With its advanced features and capabilities, it is well-suited for the demanding conditions found in Zimbabwe.
This crawler water well drilling rig offers several advantages. Its sturdy construction and mobility allow it to access even the most remote locations. The rig is equipped with state-of-the-art technology that ensures accurate drilling and high productivity.

MW600钻机技术参数 Technical Parameters of MW600 Drilling Rig
项目Model		单位Units	参数
钻进能力 Drilling capacity	最大钻孔深度 Maxdrilling depth	m	600
	最大钻孔直径 Max drilling diameter	mm	φ450
发动机Engine	发动机品牌Engine brand	/	潍柴动力Weichai
	额定功率Rated power	Kw	140/6缸
进给系统 Feed system	提升力Lifting force	T	30
	快速提升速度 Speed of fast lifting	m/min	25
	加压力 Feeding force	T	10
	快速下放速度 Speed of fast putting down	m/min	46
	最大进给行程 Max feeding stroke	mm	6600
回转系统 Rotation system	最大回转扭矩Rotary torque	Nm	11000/5500
	最大回转速度Rotary speed	r/min	70/140
行走系统 Travelling system	行走速度Travel speed	Km/h	2.5
	爬坡能力Grade ability	0	21
工具卷扬Tool winch	提升力Lifting force	T	1.5
推荐钻杆直径 Drilling rods diameter	/	mm	102/114
运输尺寸 Transport dimension	长×宽×高 Length×Width×Height	mm	5800×1950×2660
工作尺寸 Work dimension	长×宽×高 Length×Width×Height	mm	4100×3100×9700
整机重量 Machine weight	/	T	10.4
可选装的配件 Optional accessories	发电电焊机、泡沫泵、双卷扬等 welding generator、Foam pump、Second winch etc

The drilling planning process for the MW600 is carefully crafted to maximize efficiency and success. Our team of experts conducts thorough site evaluations to determine the best locations for drilling. They consider factors such as soil conditions, water table levels, and potential obstructions.

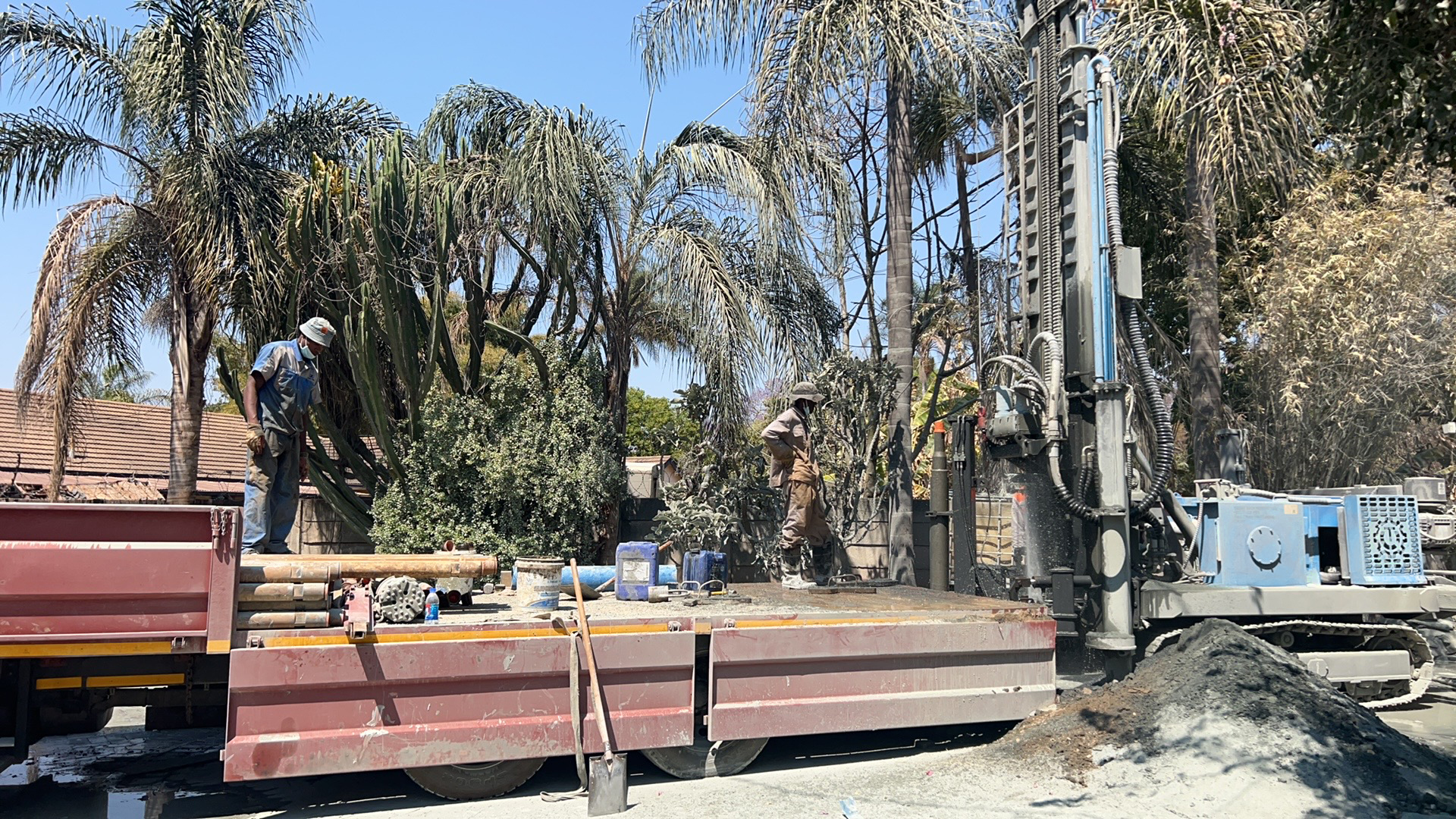

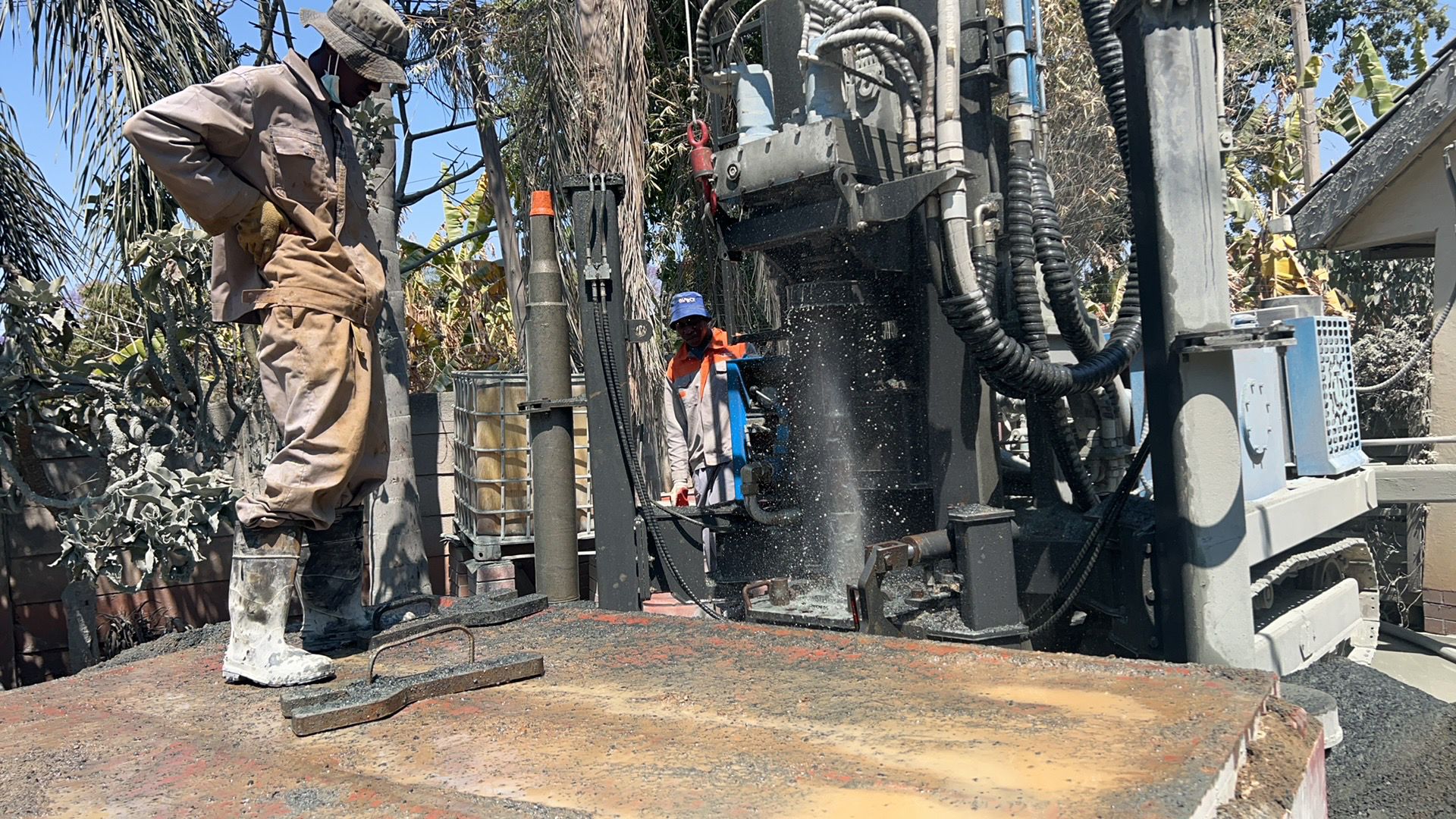

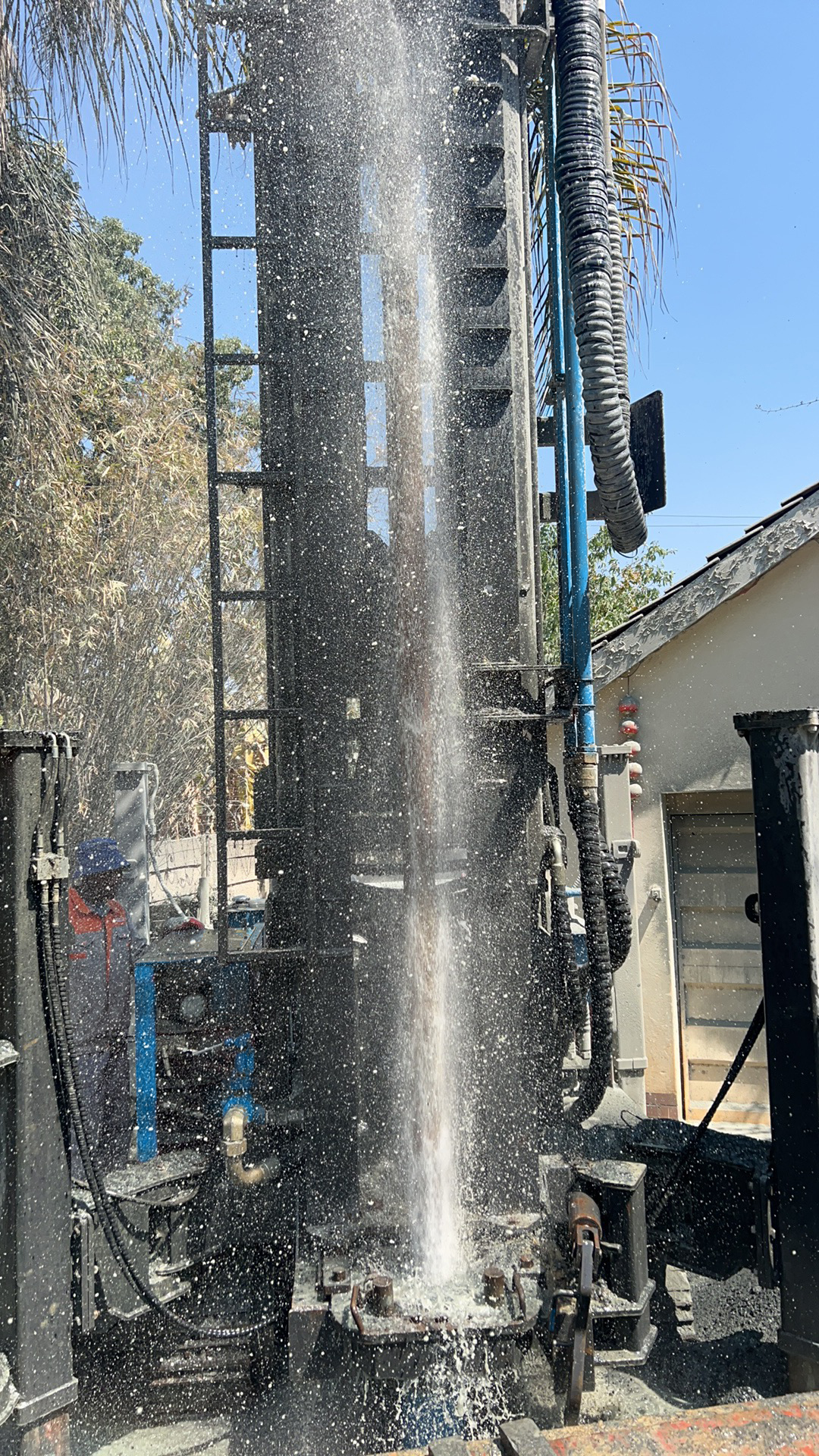

Once the optimal drilling site is selected, the MW600 gets to work. Its powerful drilling mechanism can penetrate through various types of soil and rock, reaching the desired depth to access clean and abundant water sources.
During the drilling process, strict quality control measures are in place to ensure the integrity of the well. The rig is operated by highly skilled technicians who monitor the progress closely and make adjustments as needed.
The end result is a high-quality water well that provides a reliable source of water for domestic, agricultural, or industrial use. The MW600 water well drilling rig has proven to be an invaluable asset in Zimbabwe, helping to address the water needs of the local communities.




In conclusion, the Water well drilling rig MW600 is a reliable and effective solution for drilling water wells in Zimbabwe. With its advanced features, careful drilling planning, and commitment to quality, it is a trusted choice for those seeking to access clean and abundant water sources. Keywords: water well drilling rig, water well, Crawler water well drilling rig, Drilling planning.
