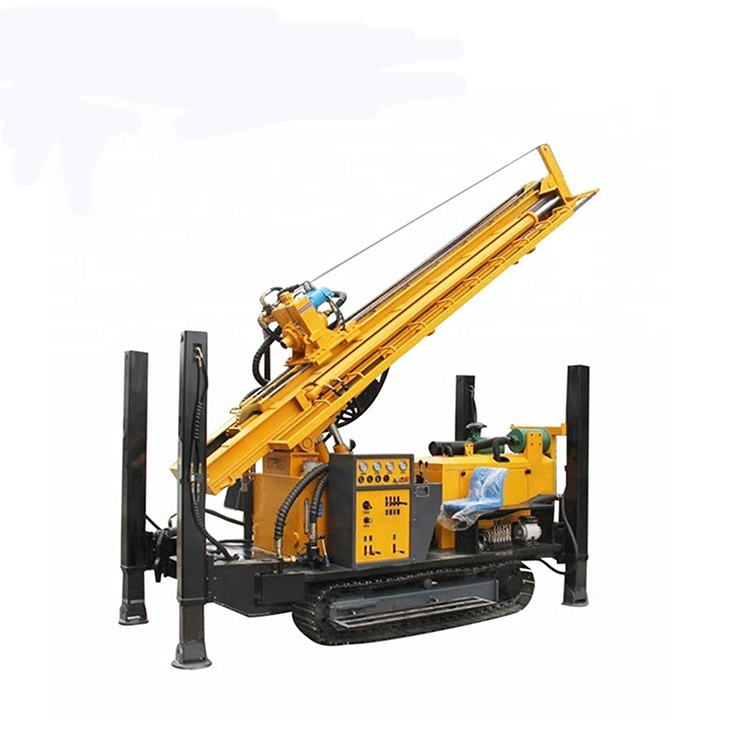

200M Protable Small Crawler Hydraulic Water Well Drilling Rig
Crawler water well drilling rig MW200 is suitable for industrial and civil drilling and geothermal drilling. It has the advantages of large drilling diameter, deep drilling depth, fast footage, and flexibility.
Advantages of MW200 water well drilling rig:
1. Engine: adopts the famous brand Yuchai 65Kw turbocharged version
2. Crawler Driving Gear: the designed motor with a speed reduction gearbox prolongs the service life
3. Hydraulic Oil Pump: It uses parallel gearbox (which is a patent) to separate oil pump monomer, supply adequate power and distribute reasonable. The hydraulic system adopts unique design, which is easy to maintain and can lower the maintenance cost.
4. Rotary Head Device: integrated casting gearbox , dual motor power, large torque, durable, small maintenance costs
5. Drill Chassis: the professional excavator chassis provides durability and strong load capacity, the wide roller chain plate causes small damage to the concrete pavement
6. Lifting Force: patent designed composite arm with small size yet long stroke, double cylinder lifting, strong lifting capacity
The lift arm is installed with a limiter to protect cylinder and ensure the safety of work
Each hydraulic tubing is covered with a protective shell to effectively extend the service life of pipeline.
| Technical Parameters | |||
| The weight(T) | 5 | Drill pipe diameter(mm) | 76 89 |
| The hole diameter(mm) | 140-254 | Drill pipe length(m) | 1.5/ 2.0/ 3.0 |
| Drilling depth (m) | 200 | Rig lifting force(T) | 13 |
| One-time advance length(m) | 3.3 | Rapid rise speed (m/min) | 30 |
| Walking speed(km/h) | 2.5 | Fast feeding speed (m/min) | 60 |
| Climbing angles(Max.) | 30 | Width of loading(m) | 2.6 |
| Equipped capacitor(kw) | 65 | Hoisting force of winch(T) | 1.5 |
| Using air pressure(MPA) | 1.7-2.5 | Swing torque(N.m) | 3400-4700 |
| Air consumption(m3/min) | 17-31 | Dimension(mm) | 3950x1750x2250 |
| Swing speed(rpm) | 45-70 | Equipped with hammer | Medium and high wind pressure series |
| The penetration efficiency(m/h) | 10-35 | High leg stroke(m) | 1.4 |
| The engine brand | Quanchai engine | ||
