D miningwell Tapered Bit For Hard Rock 36mm 38mm 40mm 42mm 34mm taper button bit for rock drilling rock drilling tools bit

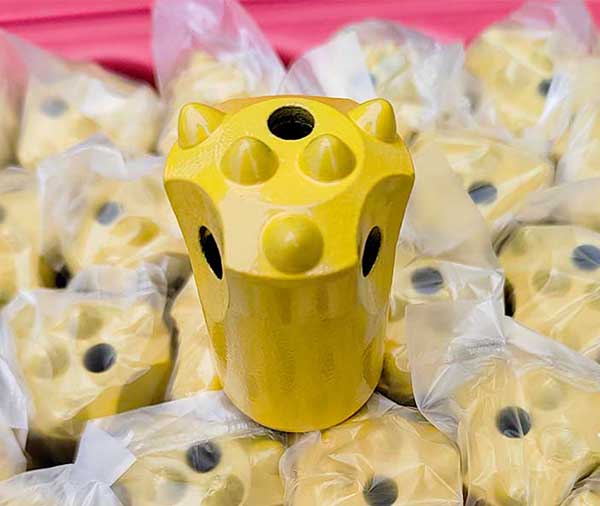

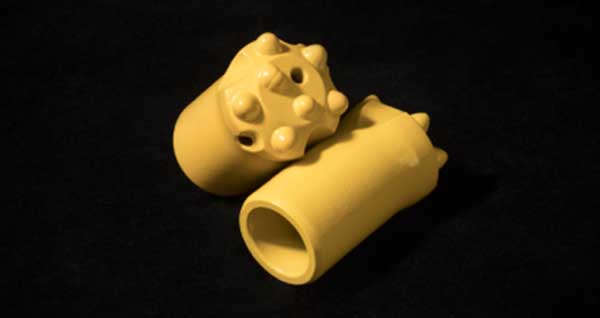

The Tapered Button Bit produced by D miningwell is designed according to ISO standard, adopts symmetrical structure design, has good powder discharge effect, and has strong crushing ability and fast rock drilling speed.

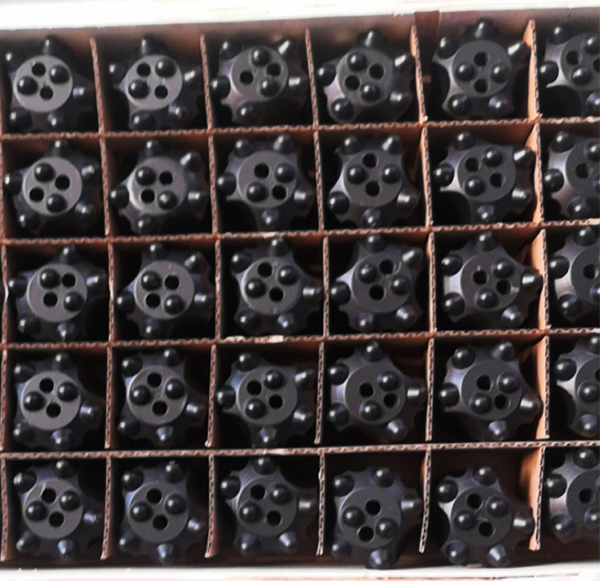

We manufacture various tapered button bits in different degrees as below:

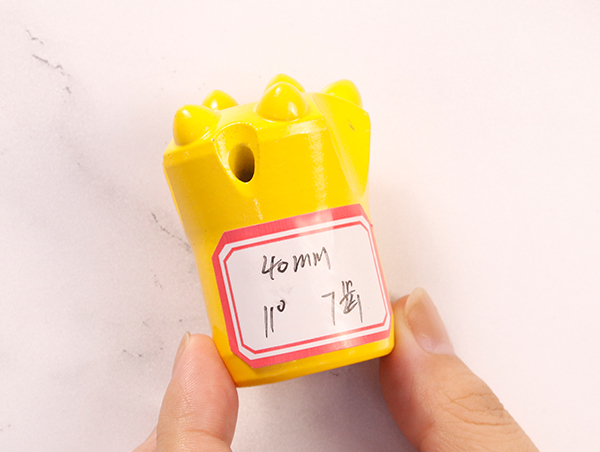

Bit diameter: 26mm to 60mm;
Tapered degree: 4°, 6°, 7°, 11°, 12°;
Shank sizes: Hex. 19mm, Hex, 22mm and Hex. 25mm;
Carbide type: Chisel type, Cross type, Button type.
Contact US
Get Price
Share:
Content
Technical Parameters | ||||||
DIAMETER | BUTTONS | FLUSHING | CARBIDE | FACE | ||
MM | IN | GAUGE NO/ SIZE | FRONT NO/ SIZE | HOLE | PROFILE | PROFILE |
32 | 1 1/4″ | 5×7 | 2×7 | IF1G | Parabolic | Flat |
36 | 1 13/32″ | 5×8 | 2×7 | 2F1G | Conical | Flat |
38 | 1 1/2″ | 5×9 | 2×7 | 1F2G | Conical | Flat |
38 | 1 1/2″ | 5×9 | 2×7 | 2F 1G | Conical | Flat |
38 | 1 1/2″ | 5×9 | 2×7 | 2F1G | Conical | Flat |
40 | 1 9/16″ | 5×9 | 2×8 | 2F 1G | Conical | Flat |
41 | 1 5/8″ | 5×9 | 2×8 | 2F1G | Conical | Flat |
41 | 1 5/8″ | 5×9 | 2×8 | 2F 1G | Parabolic | Flat |
