best underground water detector from China
The application of water detector: water detector is widely used in geological survey, water resources development, environmental monitoring and other fields. In these fields, the distribution and reserves of groundwater are of great significance to geological research and resource development. Through the use of water detector, the location, depth and storage capacity of groundwater can be accurately determined, providing important reference basis for geological investigation and water resources development.
The routine maintenance of water detector
In order to ensure the normal operation and prolong the service life of the water detector, routine maintenance is crucial. The following are some suggestions:
1. Regular inspection: regularly check whether the sensors, data processing unit and other components are working properly to ensure that the overall operation of the equipment is stable.
2. Cleaning and maintenance: Regularly clean the dust and dirt on the surface of the equipment to avoid affecting the sensitivity of the sensor.
3. Calibration and Adjustment: Regularly use standard signals for calibration to ensure that the equipment can accurately identify groundwater signals.
4. Data backup: Regularly backup the data in the equipment to prevent accidental loss of important information.
5. Maintenance Tips: If you find any abnormality or malfunction in the water detector, you should stop using it immediately and contact professional personnel for maintenance.
Product Introduction

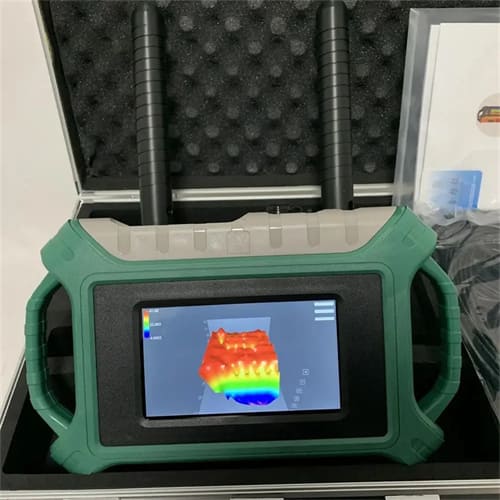

●10.1 inch touch screen operation
●Learn to operate in five minutes
●Real-time 2D, 3D and curve images2. Accurate and stable
●Solve the error of single channel multiple movement measurement.
●More than 10 channels are measured almost at the same time.
●Accuracy increased by more than 50%.
●Efficiency increased by 6 times3. Adjustable depth
●Choose the depth you need
●Provide a variety of depths for users to choose from within the maximum depth range.4. Three screen intercommunication
●Instrument screen,mobile phone screen,computer screen intercommunication.5. Intelligent and flexible
●1-30 channels optional and can be equipped with electromagnetic probe for TT probe measurement mode.
6. Perfect after-sales
●Report by computer Expert online data analysis
7. Patented technology
●Obtained multiple invention patents
●Patent No.:ZL201310205318.9;ZL 201110454869.X;ZL201320054153.5;ZL201320303919.9
●Won the recognition of Shanghai High-tech Achievement Transformation Project
Technical Parameters | 100S | 200S | 300S | 400S | 600S | 800S | 1200S | 2000S | 3000S |
Detect Depth (m) | 0-100 | 0-200 | 0-300 | 0-400 | 0-600 | 0-800 | 0-1200 | 0-2000 | 0-3000 |
Measuring Mode(Intelligent frequency select) | 20 frequencies | 40 frequencies | 60 frequencies | 80 frequencies | |||||
Resolution | 2mv | 1mv | 0.5mv | 0.2mv | 0.1mv | 0.1mv | 0.01mv | ||
Repetitive Error | ±5%±2 bit | ±3%±2 bit | ±2%±2 bit | ±2%±2 bit | ±1%±1 bit | ±1%±1 bit | ±1%±0.5 bit | ||
A/D Swith | 16 bit 1Msps | 24 bit 1 Msps | |||||||
Power frequency | >80dB | ||||||||
Data Storage | Mobile phone or tablet PC (touching LCD 5-10.1” | ||||||||
Display | Blue tooth 4.0 | ||||||||
Mainframe Power | DC7.4V 3400mAh lithium battery | DC7.4V 6800mAh lithium battery | |||||||
Mainframe Power Consumption | 160mA | 230mA | 230mA | 360mA | 360mA | 360mA | 450mA | ||
Operating Temperature | -10℃-+40℃ | -20℃-+60℃ | -40℃-+70℃ | ||||||
Mainframe Size | 18.6*14.8*8cm | ||||||||
Mainframe Weight | 0.8kg | 0.9kg |
