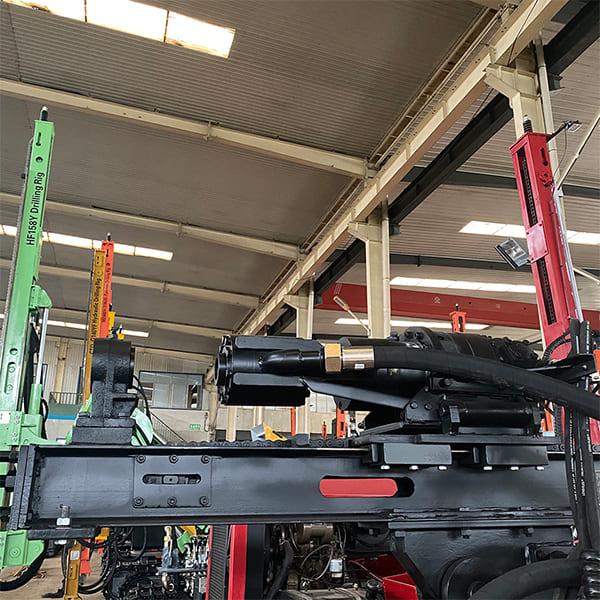

MWL 100 trailer type water well drilling rig is a moveable, efficient and multipurpose rock drilling equipment. It has rotary drilling mode and percussive drilling mode with high-pressure air, foam and mud according to different geological conditions.
It is widely used in Industrial & Agricultural Water Conservancy Engineering. It can drill rock well, monitoring well and exploration well, especially apply to drilling geothermal heating hole. It also can satisfy the project demands of engineering foundation reinforcement, pipe-following drilling on loose gravel stratum, cornerstone drilling and etc.
| Technical Parameters | |
| Drill depth (m) | 70-120 |
| Drilling Diameter (mm) | 90 -140 |
| Drill system and operation | Drill system and operation |
| One-time advance length of the drill (m) | 2 |
| Working Air Pressure (Mpa) | 0.7-1.4 |
| Air consumption (m³/min) | 7-15 |
| Lifting power (T) | 4 |
| Dimensions | |
| Overall length (mm) | 3200 |
| Overall width (mm) | 1400 |
| Overall height (mm) | 1500 |

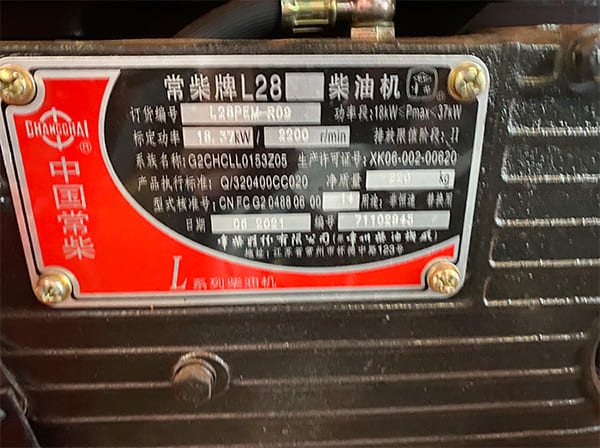

| Diesel engine | |
| Power (KW) | 18.37 |
