D miningwell Tungsten Carbide Button Drill Bit 32mm 34mm 36mm 38mm tapered rock button bit drill bit for drilling rocks

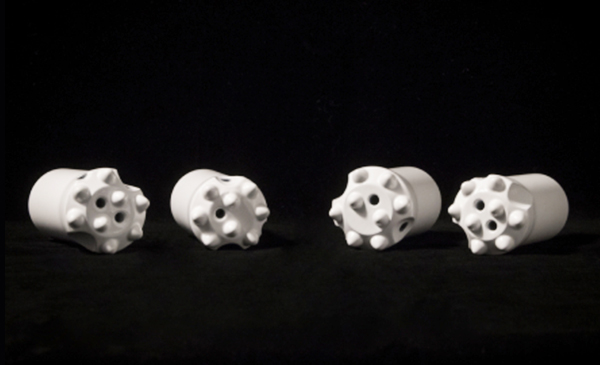

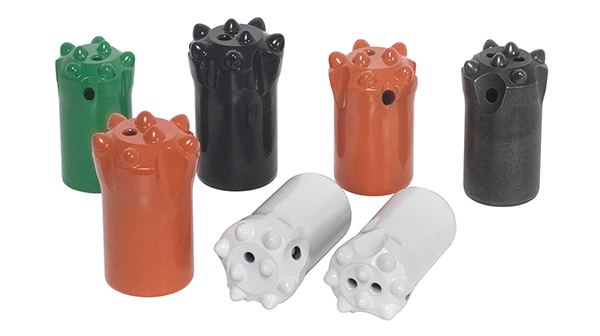

Taper bits, especially Tapered button bits are the most popular tapered drill bits with a wide selection of head diameters from 26mm to 48mm. With carbide buttons hot pressed on the bit skirts, tapered button bits have a good drilling performance and are excellent in longevity.
We manufacture various tapered button bits in different degrees as below:
Bit diameter: 26mm to 60mm;
Tapered degree: 4°, 6°, 7°, 11°, 12°;
Shank sizes: Hex. 19mm, Hex, 22mm and Hex. 25mm;
Carbide type: Chisel type, Cross type, Button type.
Contact US
Get Price
Share:
Content
Technical Parameters | ||||||
DIAMETER | BUTTONS | FLUSHING | CARBIDE | FACE | ||
MM | IN | GAUGE NO/ SIZE | FRONT NO/ SIZE | HOLE | PROFILE | PROFILE |
32 | 1 1/4″ | 5×7 | 2×7 | IF1G | Parabolic | Flat |
36 | 1 13/32″ | 5×8 | 2×7 | 2F1G | Conical | Flat |
38 | 1 1/2″ | 5×9 | 2×7 | 1F2G | Conical | Flat |
38 | 1 1/2″ | 5×9 | 2×7 | 2F 1G | Conical | Flat |
38 | 1 1/2″ | 5×9 | 2×7 | 2F1G | Conical | Flat |
40 | 1 9/16″ | 5×9 | 2×8 | 2F 1G | Conical | Flat |
41 | 1 5/8″ | 5×9 | 2×8 | 2F1G | Conical | Flat |
41 | 1 5/8″ | 5×9 | 2×8 | 2F 1G | Parabolic | Flat |
