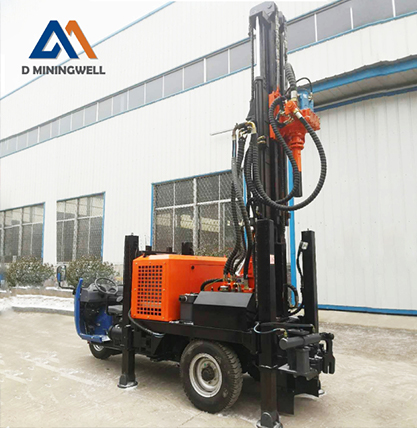

D Miningwell water rigs for sale 200m wheel mounted driling small portable well drilling rig electric rotary dri
Advantages of MWL200 tricycle water well drilling rig:
COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
EXTENDING UNDERCARRIAGE
Features:
1. Equipped with a 65KW Yuchai brand turbocharged engine with strong power.
2. Patented design compound boom, double cylinder lifting.
3. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder.
4. It has high flexibility, is sturdy and durable, has little damage to the road surface, and is easy to move.
5. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.
6. The whole machine uses a three-wheeled tractor with high horsepower and low torque, which can cope with more complex road conditions and is easy to move.
7. Dual systems can be added: 1. Air power system with air compressor 2. Mud pump system with mud pump.
| MWL200 water well drilling rig | |||
| The weight（T） | 4.7 | Drill pipe diameter（mm） | Φ76 Φ89 |
| The hole diameter（mm） | 140-254 | Drill pipe length（m） | 1.5m 2.0m 3.0m |
| Drilling depth（m） | 200 | Rig lifting force（T） | 13 |
| One-time advance length（m） | 3.3 | Rapid rise speed（m/min） | 20 |
| Walking speed（km/h） | 20-40 | Fast feeding speed（m/min） | 40 |
| Climbing angles（Max.） | 30 | Swing speed（rpm） | 45-65 |
| Equipped capacitor（kw） | 65 | Hoisting force of winch（T） | —- |
| Using air pressure（MPA） | 1.7-2.5 | Swing torque（N.m） | 3400-4700 |
| Air consumption（m³/min） | 17-31 | Dimension（mm） | 4350×1600×2450 |
| The penetration efficiency（m/h） | 10-35 | High leg stroke（m） | 1.4 |
| The engine brand | Quanchai engine (Replaceable Cummins Engine) | ||
