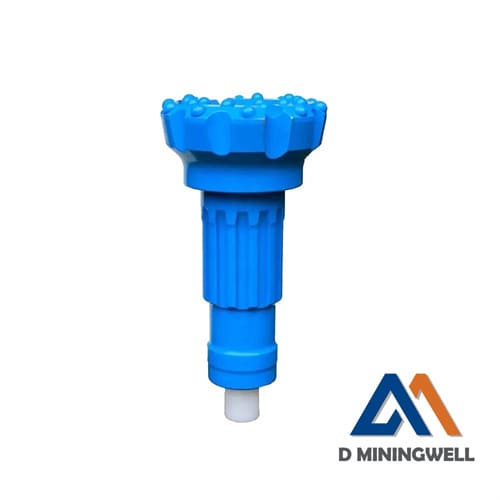

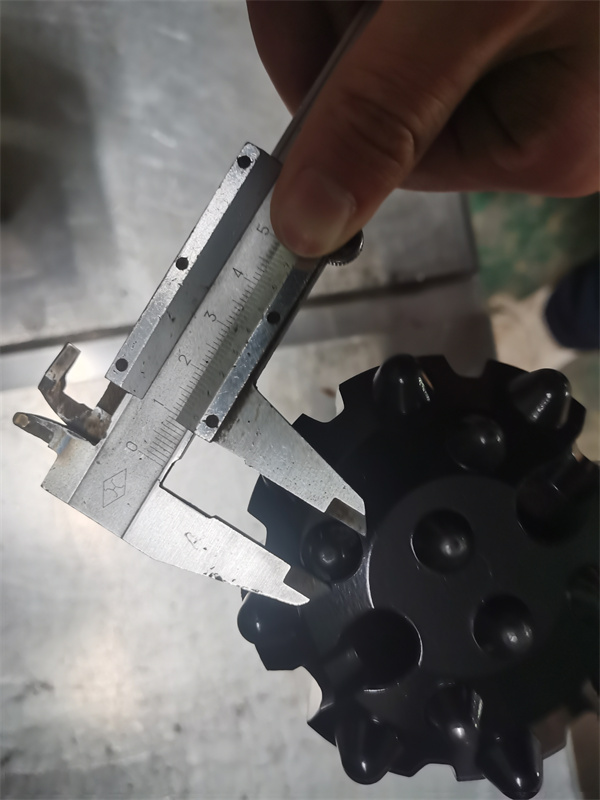

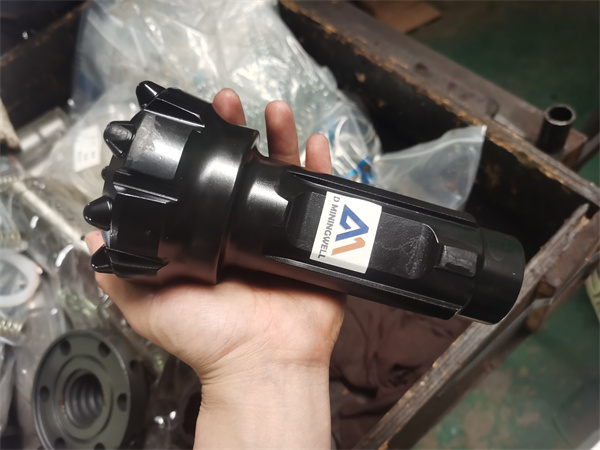

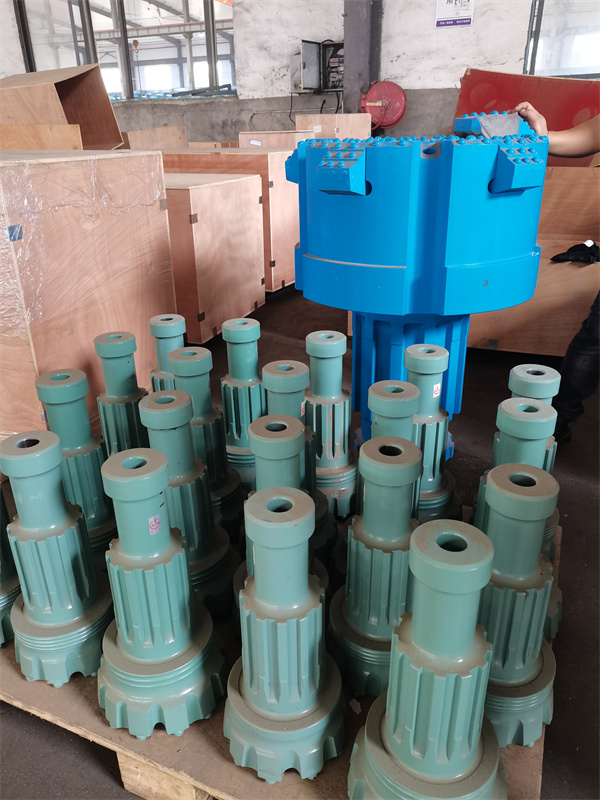

D Miningwell down-the-hole drill bit is a kind of drill bit that is used in conjunction with the down-the-hole impactor. It cooperates with the impactor through the spline to perform drilling operations. Manufactured with high-quality steel and cemented carbide as raw materials, after a special heat treatment process, the button bit can meet the requirements of digging in rock formations with strong hardness, and can minimize the loss in the process of energy transmission. The tooth force is even and it is not easy to drop and take off the teeth, so that the impact energy can be concentrated on the rock to achieve the purpose of efficient tunneling. Mainly used in geological exploration, coal mines, water conservancy and hydropower, roads, railways, bridges, construction, etc.
CIR series DTH bits(Low pressure)
| Technical Parameters | |||||
| Model： | Gauge buttons(mm) | Front buttons(mm) | Tail shank diameter(mm) | Port holes | Weight(KG) |
| CIR76-76 | φ12*5 | φ12*3 | φ43 | 2 | 2.1 |
| CIR90-90 | φ14*6 | φ13*2+φ12*2 | φ53.5 | 2 | 3.7 |
| CIR90-110 | φ14*6 | φ13*3+φ12*3 | φ53.5 | 3 | 4.6 |
| CIR90-130 | φ14*7 | φ13*3+φ12*4 | φ53.5 | 3 | 6 |
| CIR110-110 | φ14*6 | φ13*3+φ12*3 | φ64 | 3 | 6 |
| CIR110-130 | φ14*7 | φ13*3+φ12*4 | φ64 | 3 | 7.4 |
| CIR110-150 | φ14*8 | φ14*3+φ13*6 | φ64 | 3 | 9.6 |
| CIR110-170 | φ15*9 | φ14*6+φ13*10 | φ64 | 3 | 12.3 |
| CIR110-200 | φ15*9 | φ14*6+φ13*12 | φ64 | 3 | 16.5 |
| CIR150-150 | φ16*9 | φ14*6+φ14*4 | φ89.5 | 3 | 14.8 |
| CIR150-175 | φ16*9 | φ14*6+φ14*5 | φ89.5 | 3 | 19 |
| CIR170-175 | φ16*9 | φ14*6+φ14*5 | φ102 | 3 | 21 |
| CIR170-185 | φ16*9 | φ14*6+φ14*6 | φ102 | 3 | 21.8 |
DHD series DTH bits(High pressure)
| Technical Parameters | |||||||
| Model： | Head diameter： | Shank length： | Spline： | Port holes： | Gauge buttons： | Front buttons： | Weight： |
| DHD25A-76 | 76 | 174 | 6 | 2 | φ14mm*6 | φ11mm*4 | 3.2kg |
| DHD35A-90 | 90 | 180 | 8 | 2 | φ14mm*6 | φ12mm*5 | 4.7kg |
| DHD35A-100 | 100 | 180 | 8 | 2 | φ14mm*6 | φ12mm*5 | 4.8kg |
| DHD340-108 | 108 | 209 | 8 | 2 | φ16mm*7 | φ14mm*6 | 7.85kg |
| DHD340-130 | 130 | 209 | 8 | 2 | φ16mm*8 | φ14mm*4+φ13mm*3 | 8.88kg |
| DHD350-140 | 140 | 260 | 8 | 2 | φ18mm*7 | φ15mm*4+φ14mm*3 | 15.8kg |
| DHD350-152 | 152 | 260 | 8 | 2 | φ18mm*8 | φ14mm*8 | 17kg |
| DHD350-178 | 178 | 260 | 8 | 2 | φ18mm*8 | φ16mm*6+φ14mm*5 | 20.4kg |
| DHD360-154 | 154 | 308.5 | 8 | 2 | φ18mm*8 | φ16mm*4+φ15mm*4 | 22.5kg |
| DHD360-178 | 178 | 308.5 | 8 | 2 | φ18mm*8 | φ16mm*6+φ15mm*5 | 26.1kg |
| DHD360-203 | 203 | 308.5 | 8 | 2 | φ18mm*10 | φ16mm*8+φ15mm*6 | 30.4kg |
| DHD380-203 | 203 | 350 | 10 | 2 | φ18mm*10 | φ18mm*4+φ16mm*10 | 48.5kg |
| DHD380-254 | 254 | 350 | 10 | 2 | φ18mm*12 | φ18mm*12+φ16mm*8 | 62.4kg |
