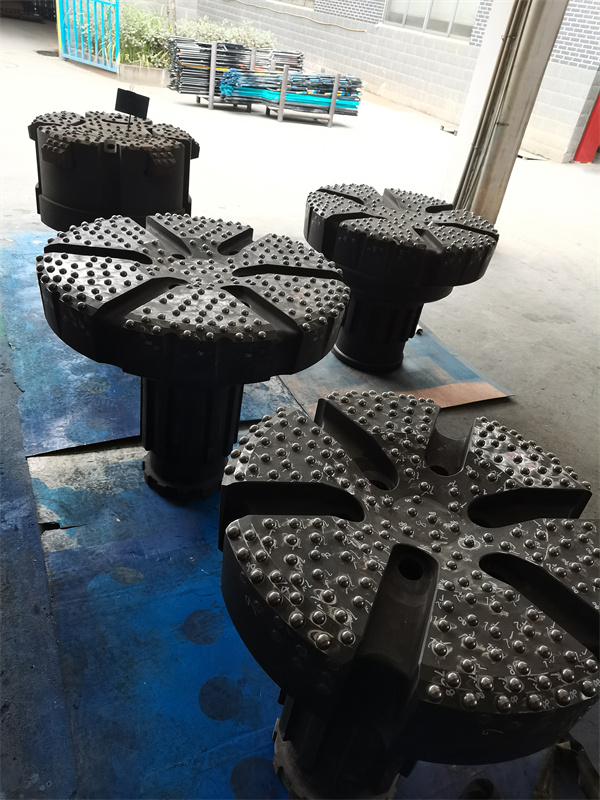

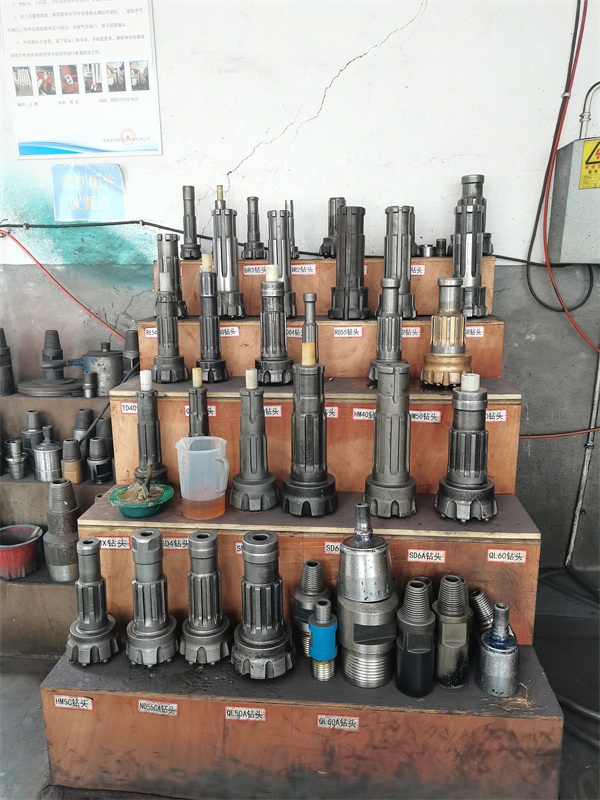

D Miningwell down-the-hole drill bits have the characteristics of good stability, long service life, high drilling efficiency, low pressure and medium speed drilling, good diameter protection effect, wide application range and superior cost performance, etc., and can be widely used in geological exploration, Rock drilling and rock core sampling for pile inspection in coal mining, water conservancy and hydropower construction, road and railway construction.
There are many manufacturers of down-the-hole drill bits, and the product quality and price differences are relatively large. Our company’s down-the-hole drill bits are made of high-quality alloy and high-quality steel shell, combined with advanced production technology, which avoids the phenomenon of alloy teeth and shell fracture that often occur in general products. Drill faster. Of course, the price may be more expensive than that of ordinary manufacturers, so please do not compare our quality with ordinary drill bits.
CIR series DTH bits(Low pressure)
| Technical Parameters | |||||
| Model： | Gauge buttons(mm) | Front buttons(mm) | Tail shank diameter(mm) | Port holes | Weight(KG) |
| CIR76-76 | φ12*5 | φ12*3 | φ43 | 2 | 2.1 |
| CIR90-90 | φ14*6 | φ13*2+φ12*2 | φ53.5 | 2 | 3.7 |
| CIR90-110 | φ14*6 | φ13*3+φ12*3 | φ53.5 | 3 | 4.6 |
| CIR90-130 | φ14*7 | φ13*3+φ12*4 | φ53.5 | 3 | 6 |
| CIR110-110 | φ14*6 | φ13*3+φ12*3 | φ64 | 3 | 6 |
| CIR110-130 | φ14*7 | φ13*3+φ12*4 | φ64 | 3 | 7.4 |
| CIR110-150 | φ14*8 | φ14*3+φ13*6 | φ64 | 3 | 9.6 |
| CIR110-170 | φ15*9 | φ14*6+φ13*10 | φ64 | 3 | 12.3 |
| CIR110-200 | φ15*9 | φ14*6+φ13*12 | φ64 | 3 | 16.5 |
| CIR150-150 | φ16*9 | φ14*6+φ14*4 | φ89.5 | 3 | 14.8 |
| CIR150-175 | φ16*9 | φ14*6+φ14*5 | φ89.5 | 3 | 19 |
| CIR170-175 | φ16*9 | φ14*6+φ14*5 | φ102 | 3 | 21 |
| CIR170-185 | φ16*9 | φ14*6+φ14*6 | φ102 | 3 | 21.8 |
DHD series DTH bits(High pressure)
| Technical Parameters | |||||||
| Model： | Head diameter： | Shank length： | Spline： | Port holes： | Gauge buttons： | Front buttons： | Weight： |
| DHD25A-76 | 76 | 174 | 6 | 2 | φ14mm*6 | φ11mm*4 | 3.2kg |
| DHD35A-90 | 90 | 180 | 8 | 2 | φ14mm*6 | φ12mm*5 | 4.7kg |
| DHD35A-100 | 100 | 180 | 8 | 2 | φ14mm*6 | φ12mm*5 | 4.8kg |
| DHD340-108 | 108 | 209 | 8 | 2 | φ16mm*7 | φ14mm*6 | 7.85kg |
| DHD340-130 | 130 | 209 | 8 | 2 | φ16mm*8 | φ14mm*4+φ13mm*3 | 8.88kg |
| DHD350-140 | 140 | 260 | 8 | 2 | φ18mm*7 | φ15mm*4+φ14mm*3 | 15.8kg |
| DHD350-152 | 152 | 260 | 8 | 2 | φ18mm*8 | φ14mm*8 | 17kg |
| DHD350-178 | 178 | 260 | 8 | 2 | φ18mm*8 | φ16mm*6+φ14mm*5 | 20.4kg |
| DHD360-154 | 154 | 308.5 | 8 | 2 | φ18mm*8 | φ16mm*4+φ15mm*4 | 22.5kg |
| DHD360-178 | 178 | 308.5 | 8 | 2 | φ18mm*8 | φ16mm*6+φ15mm*5 | 26.1kg |
| DHD360-203 | 203 | 308.5 | 8 | 2 | φ18mm*10 | φ16mm*8+φ15mm*6 | 30.4kg |
| DHD380-203 | 203 | 350 | 10 | 2 | φ18mm*10 | φ18mm*4+φ16mm*10 | 48.5kg |
| DHD380-254 | 254 | 350 | 10 | 2 | φ18mm*12 | φ18mm*12+φ16mm*8 | 62.4kg |
