DTH Surface Drill Rigs-down the hole drilling

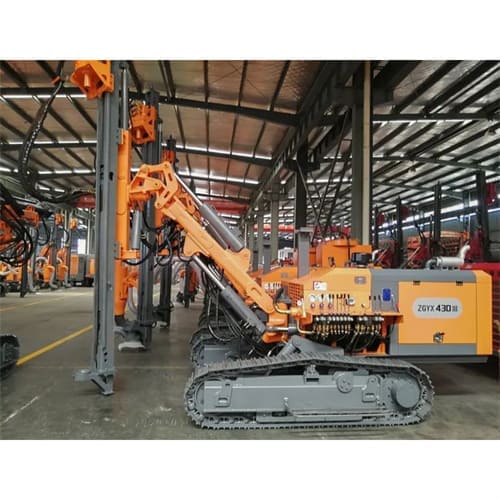

MWYX-430 seprated DTH drilling rig has an optional maximum rotation torque of 7000N.m and is suitable for pit foundation anchor rods, root canals, and large-diameter twist drill pipe operations. The high-pressure oil pump drives all high-pressure components, making the product suitable for various hole diameters and working conditions. The super-strength, full-featured design and high-level configuration are deeply recognized by the majority of users.

Rated 4.9/5 based on 380 customer reviews
Share:
Content

MWYX-430 seprated DTH drilling rig has an optional maximum rotation torque of 7000N.m and is suitable for pit foundation anchor rods, root canals, and large-diameter twist drill pipe operations. The high-pressure oil pump drives all high-pressure components, making the product suitable for various hole diameters and working conditions. The super-strength, full-featured design and high-level configuration are deeply recognized by the majority of users.

1. Large displacement dust collector for φ165 mm hole dust collection requirements.

2. Heavy duty structure design for 200 mm hole spiral drilling.

3. Maximum rotation torque up to 7,000 N.m.(optional)

4. The heavy duty tramming mechanism with oscillation for various working conditions.

General Specification
Drilling depth 30m
Drill Pipe Sizes Φ 76×3000 mm
Hole Range φ 110-165mm
Hammer 4 “/ 5”
Rotation Torque(Max.) 3200 N.m
Rotary speed 0-100 rpm
Feed Force 20 kN
Pull Up Force 45 kN
Tramming Speed(Max.) 3 km/h
Gradient 30 °
Weight 5820kg/6460kg
Dimension 7370*2360*2560mm
Matching Air Compressor
Working Pressure 0.7-2.5 MPa
F.A.D 10-20m3/min
Diesel Screw Compressor Model 186SCY-18/298SCY-24
Electric Screw Compressor Model 132SDY-17/185SDY-24
