Fresh Result Long Range 3D Underground Water Detector
In arid areas or in emergency situations, finding groundwater sources can be a life or death task. With the advancement of technology, we have more and more tools and equipment to help us in groundwater exploration and development. In this article, we will introduce a kind of equipment called groundwater explorer, its working principle, characteristics and uses.
The basic principle of underground water detector
The principle of underground water detector is to use the natural electric field and the difference of geological structure to produce the change of resistivity and other related parameters to judge and analyze the geological anomalies we are looking for. Compared with the traditional electric exploration, this detector has the essential difference and leapfrog improvement. Its exploration speed and accuracy have been increased several times.
Specifically, the underground water detector first receives the natural electric field signal through the receiving device, and then through multiple anti-interference design, shielding the interference signal, frequency selection signal processing and amplification, to get the signal we need. According to the changes of these signals, the location and depth of the existence of groundwater can be determined.

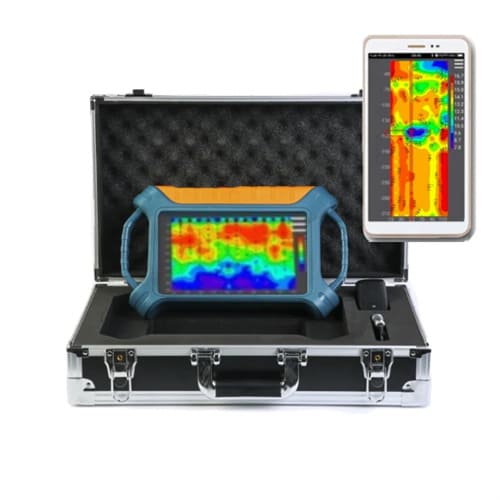

Product Introduction
●10.1 inch touch screen operation
●Learn to operate in five minutes
●Real-time 2D, 3D and curve images2. Accurate and stable
●Solve the error of single channel multiple movement measurement.
●More than 10 channels are measured almost at the same time.
●Accuracy increased by more than 50%.
●Efficiency increased by 6 times3. Adjustable depth
●Choose the depth you need
●Provide a variety of depths for users to choose from within the maximum depth range.
4. Three screen intercommunication
●Instrument screen,mobile phone screen,computer screen intercommunication.
5. Intelligent and flexible
●1-30 channels optional and can be equipped with electromagnetic probe for TT probe measurement mode.
6. Perfect after-sales
●Report by computer Expert online data analysis
7. Patented technology
●Obtained multiple invention patents
●Patent No.:ZL201310205318.9;ZL 201110454869.X;ZL201320054153.5;ZL201320303919.9
●Won the recognition of Shanghai High-tech Achievement Transformation Project
Technical Parameters | 100S | 200S | 300S | 400S | 600S | 800S | 1200S | 2000S | 3000S |
Detect Depth (m) | 0-100 | 0-200 | 0-300 | 0-400 | 0-600 | 0-800 | 0-1200 | 0-2000 | 0-3000 |
Measuring Mode(Intelligent frequency select) | 20 frequencies | 40 frequencies | 60 frequencies | 80 frequencies | |||||
Resolution | 2mv | 1mv | 0.5mv | 0.2mv | 0.1mv | 0.1mv | 0.01mv | ||
Repetitive Error | ±5%±2 bit | ±3%±2 bit | ±2%±2 bit | ±2%±2 bit | ±1%±1 bit | ±1%±1 bit | ±1%±0.5 bit | ||
A/D Swith | 16 bit 1Msps | 24 bit 1 Msps | |||||||
Power frequency | >80dB | ||||||||
Data Storage | Mobile phone or tablet PC (touching LCD 5-10.1” | ||||||||
Display | Blue tooth 4.0 | ||||||||
Mainframe Power | DC7.4V 3400mAh lithium battery | DC7.4V 6800mAh lithium battery | |||||||
Mainframe Power Consumption | 160mA | 230mA | 230mA | 360mA | 360mA | 360mA | 450mA | ||
Operating Temperature | -10℃-+40℃ | -20℃-+60℃ | -40℃-+70℃ | ||||||
Mainframe Size | 18.6*14.8*8cm | ||||||||
Mainframe Weight | 0.8kg | 0.9kg |
