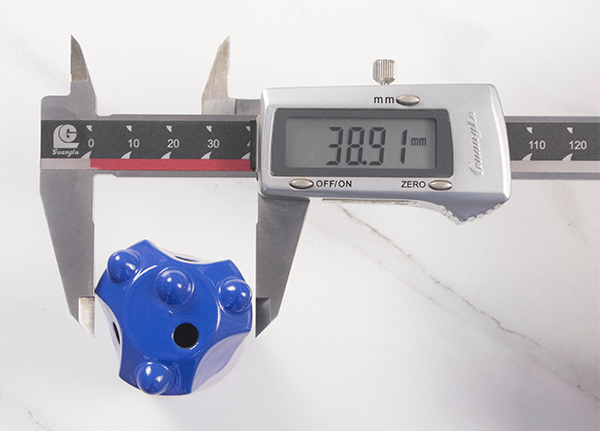

High Quality 36mm 38mm Button Drill Bit Broca Rock drill 7 11 12 degree Taper drill bit for hard rock

D Miningwell was founded in Quzhou city, China in 2001. For more than 26 years production and operation process. D Miningwell has been on the leading edge of mining equipment. We has its own drilling rig, DTH hammer, and drill pipe production workshops. provides a wide range of quality tools to mining, tunnelling, quarrying, water-well projects and urban transportation construction. D Miningwell is committed to providing customers with the most efficient and cost-effective drilling solution. Our team of drilling specialists are standing by to assist.

Rated 4.9/5 based on 369 customer reviews
Share:
Content

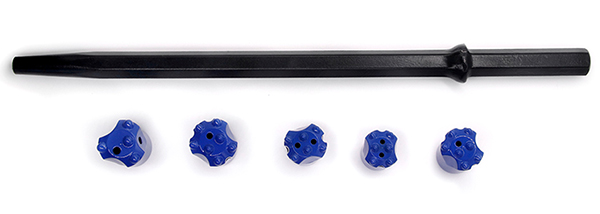

Tapered Button Bit is mainly used with a pneumatic rock drill and a taper rod. It is connected with the drill rod through the taper to carry out drilling operations. It is mainly used in the secondary crushing of mines, the support of bolts, the excavation of roadways and other fields.
We manufacture various tapered button bits in different degrees as below:
Bit diameter: 26mm to 60mm;
Tapered degree: 4°, 6°, 7°, 11°, 12°;
Shank sizes: Hex. 19mm, Hex, 22mm and Hex. 25mm;
Carbide type: Chisel type, Cross type, Button type.

Technical Parameters
DIAMETER BUTTONS FLUSHING CARBIDE FACE
MM IN GAUGE NO/ SIZE FRONT NO/ SIZE HOLE PROFILE PROFILE
32 1 1/4″ 5×7 2×7 IF1G Parabolic Flat
36 1 13/32″ 5×8 2×7 2F1G Conical Flat
38 1 1/2″ 5×9 2×7 1F2G Conical Flat
38 1 1/2″ 5×9 2×7 2F 1G Conical Flat
38 1 1/2″ 5×9 2×7 2F1G Conical Flat
40 1 9/16″ 5×9 2×8 2F 1G Conical Flat
41 1 5/8″ 5×9 2×8 2F1G Conical Flat
41 1 5/8″ 5×9 2×8 2F 1G Parabolic Flat
