male female threaded rod – Manufacturer & Supplier

Straightness and longer service life
Today’s rock drills generate virtually unlimited impact force, which requires controlling that force and, most importantly, ensuring that the impact force is delivered into the rock as efficiently, accurately and economically as possible. With this in mind, D Miningwell is constantly working on research and development to ensure our products are constantly improving.

Rated 4.8/5 based on 292 customer reviews
Share:
Content

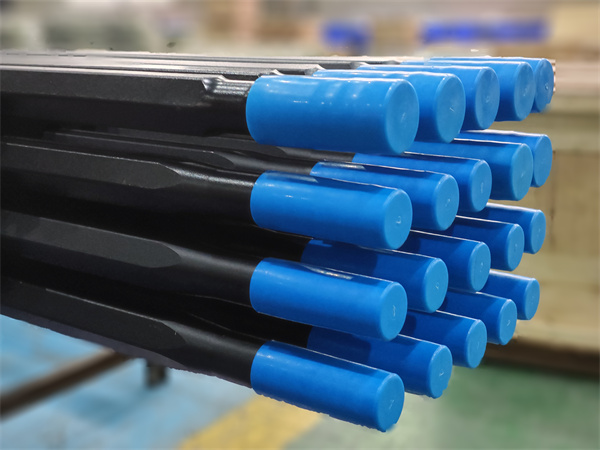

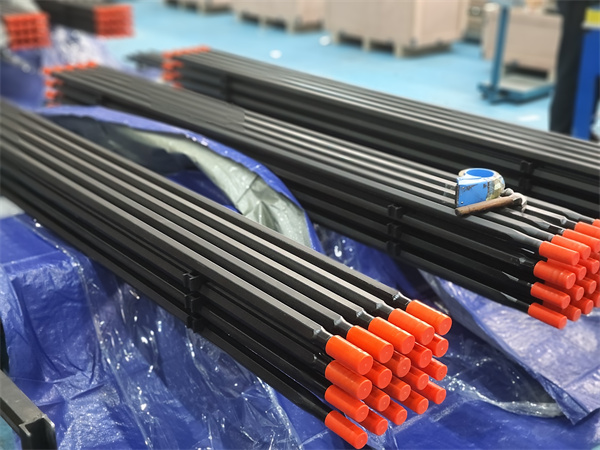

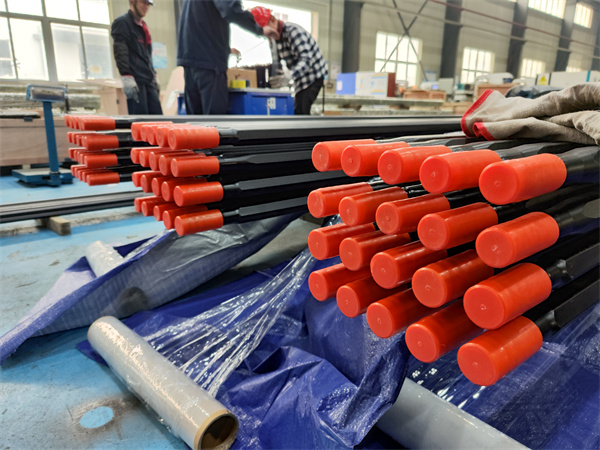

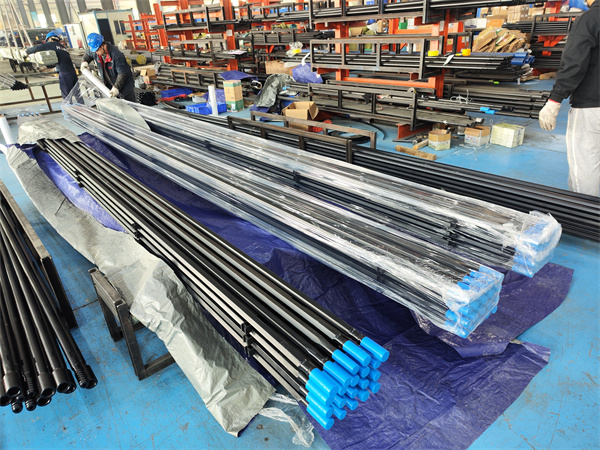

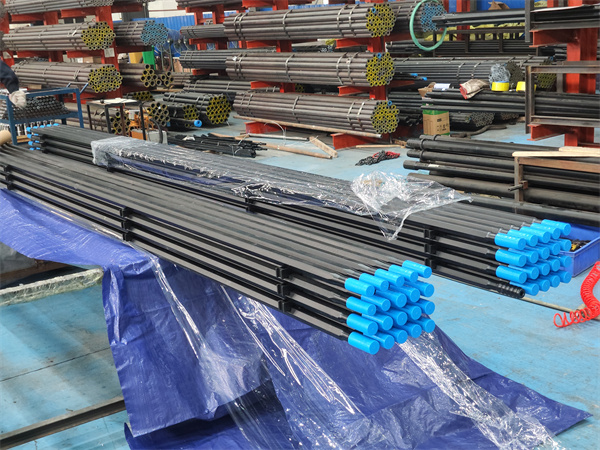

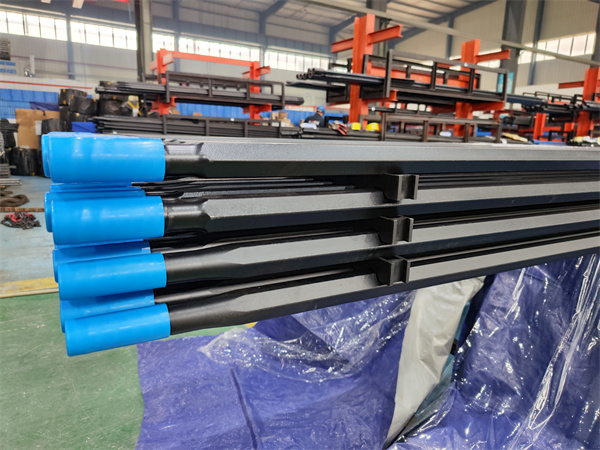

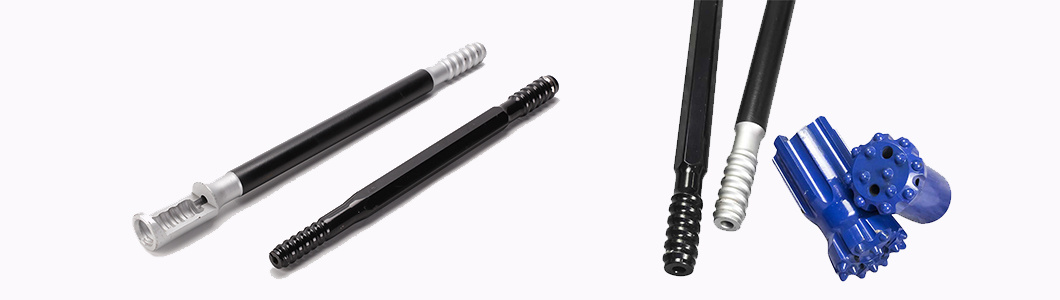

Extension Rod(MM Rod)
Thread Sizes: R22, R25, R28, R32, R35, R38, T38, T45, T51
Rod Diameters: Round 32mm, Round 39mm, Round 46mm, Round 52mm, Hex 22mm, Hex 25mm, Hex 28mm, Hex 32mm, Hex 35mm
Effective Lengths: 600mm to 6,400mm

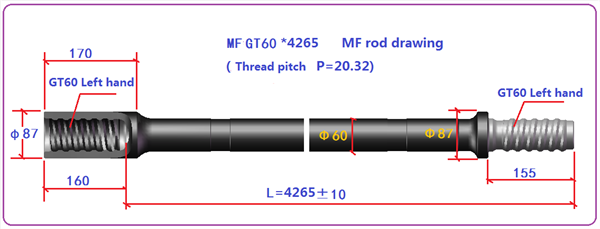

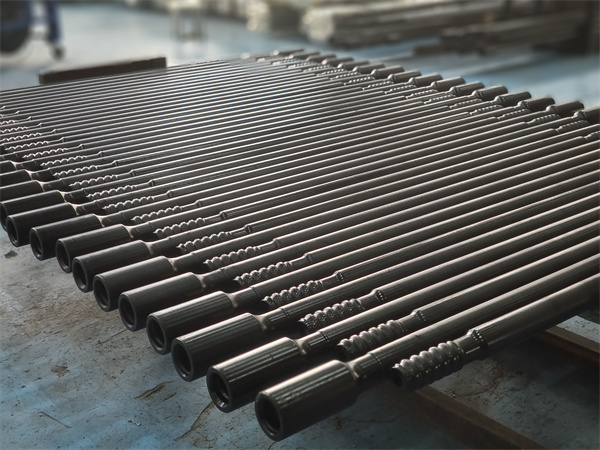

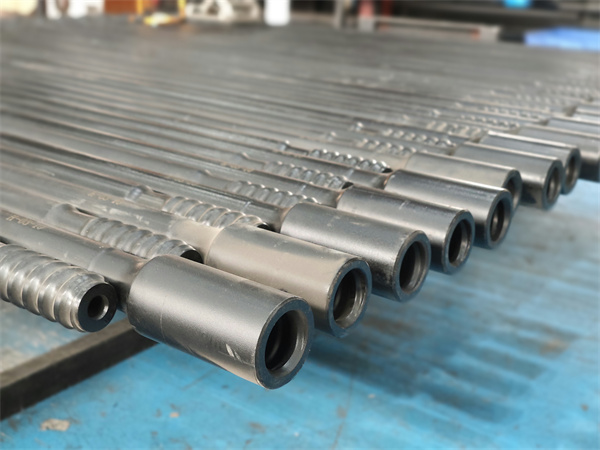

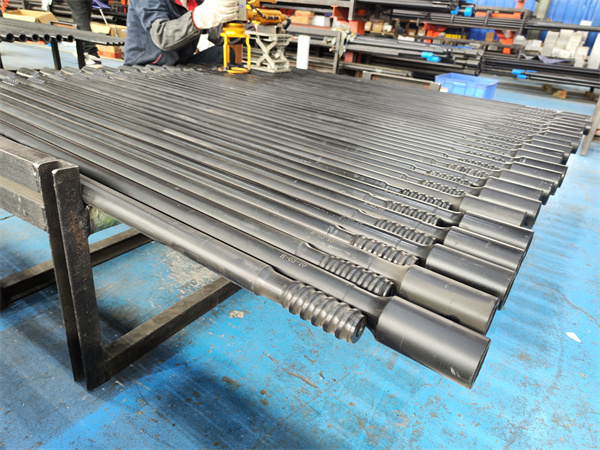

Male/Female (M/F) rod, Speed rod
Thread Sizes: R32, T38, T45, T51
Rod Diameters: Round 32mm, Round 39mm, Round 46mm, Round 52mm
Effective Lengths: 915mm to 6,100mm

Drifting & Tunneling Rods
Thread Sizes: R22, R25, R28, R32, R38, T38
Rod Diameters: Round 32mm, Round 39mm, Hex 25mm, Hex 28mm, Hex 32mm, Hex 35mm
Effective Lengths: 2,100mm to 6,400mm

Technical Parameters
Product Name Rod size Specification Length Rod type
R25 Rod Round25 R25-R25-R25 2430 M/M Extension rod
Round28 R25-R28-R25 1350 M/M Extension rod
R32 Rod Hex25 R32-H25-R25 2900 M/M Extension rod
Hex28 R32-H28-R28 2435 M/M Extension rod
R32-H28-R28 2435 M/F Speed rod
Hex32 R32-H32-R25 2742 M/M Extension rod
R32-H32-R25 2742 M/F Speed rod
R32 R32-R32-R32 1525 M/M Extension rod
R38 Rod Hex32 R38-H32-R32 3100 M/M Extension rod
Hex35 R38-H35-R32 1350 F/F Extension rod
R38-H35-R32 2435 M/M Extension rod
R38-H35-R32 2435 M/F Speed rod
R38-H35-R32 4270 M/M Extension rod
R38-H35-R32 4270 M/F Speed rod
R38-H35-R32 4880 M/M Extension rod
R38-H35-R32 4880 M/F Speed rod
T38 Rod Hex32 T38-H32-R32 4305 M/M Extension rod
T38-H32-R32 4305 F/M Speed rod
R39 T38-R39-T38 1220 M/F Speed rod
T38-R39-T38 1525 M/F Speed rod
T38-R39-T38 3050 M/M Extension rod
T38-R39-T38 3050 M/F Speed rod
T38-R39-T38 3660 M/F Speed rod
T38-R39-T38 4260 M/F Speed rod
Hex35 T38-H35-R32 4260 M/F Speed rod
T38-H35-R32 4260 M/M Extension rod
T38-H35-R32 3700 M/M Extension rod
T38-H35-R32 3700 M/F Speed rod
T38-H35-R32 4305 M/M Extension rod
T38-H35-R32 4305 M/F Speed rod
T45 Rod Round46 T45-R46-T45 1525 M/F Speed rod
T45-R46-T45 3050 M/M Extension rod
T45-R46-T45 3660 M/F Speed rod
T45-R46-T45 4270 F/M Speed rod
T51 Rod Round52 T51-R52-T51 3660 M/M Extension rod

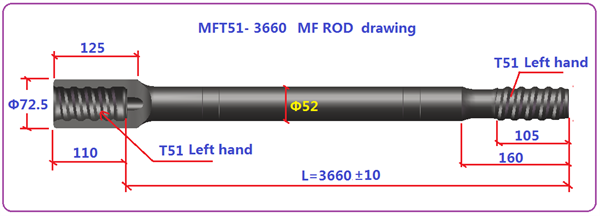

T51-R52-T51 3660 M/F Speed rod
T51-R52-T51 4270 M/F Speed rod
