Open Pit Mining Equipment For Sale

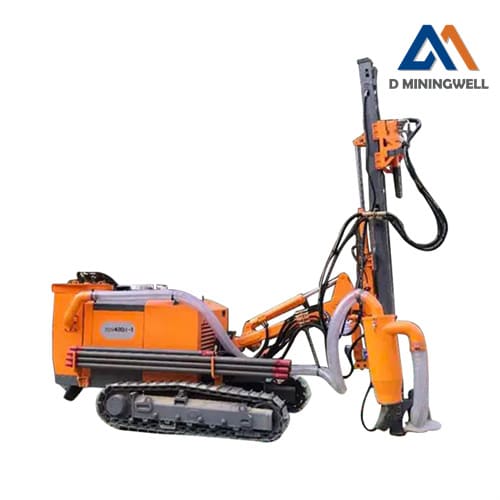

MWYX-420 seprated DTH drilling rig is equipped with a dual-motor rotary head and a rotary speed-adjustable multi-way valve. The rotary torque can be 2200N.m, which meets the needs of φ76 drill pipe and 130 hole diameter.
The rotation speed can reach up to 150 rpm, which meets the needs of some customers for high-speed drilling in soft rock formations. At the same time, the 420 series seprated DTH drilling rig comes standard with engineering crawlers and plunger motors. It adds a leveling function, improves the equipment’s climbing and off-road performance, and can adapt to complex terrain conditions. Vertical holes can be drilled for slopes to meet the needs of different working conditions.
MWYX series products have the characteristics of high efficiency, environmental protection, energy saving and safety.
Automatic drill change and powerful off-road performance reduce rig assist time. The large displacement high pressure screw air compressor makes the slag discharge completely, which is more conducive to the substantial increase of the rock drilling speed and reduces the consumption of the drilling rig. The powerful propulsion and rotation design solves the problem of sticking in complex rock formations on the basis of satisfying high-speed rock drilling.
The standard two-stage dry dust collector and optional wet dust collector of the drilling rig not only meet the environmental protection needs of mines and operators, but also greatly reduce the pollution of dust to the equipment itself.
The single engine of the drilling rig drives the screw air compressor and hydraulic system at the same time, which reduces the total power of the diesel engine of the split drilling rig by about 35% and the maintenance cost by 50%.
The drilling rig is equipped with the crawler leveling function, which makes the center of gravity of the drilling rig more stable up and down the slope, and the powerful operation capacity reduces the number of equipment and personnel required in the mine.
| General Specification | |
| Hole Range | Φ 90-130 mm |
| Drill Pipe Sizes | Φ 76×3000 mm |
| Rotation Torque(Max.) | 2200 N.m |
| Rotation Speed | 0- 150 rpm |
| Feed Force | 15 kN |
| Pull Up Force | 25 kN |
| Feed Type | Chain / cylinder |
| Tramming Speed(Max.) | 2.5 km/h |
| Gradient | 30° |
| Weight | 4000 kg/4400kg |
| Dimension | 5700*2130*2200mm |
| Power Pack-( ZAYX-420B) | YuChai YC4DK80 58KW |
| Power Pack – (ZAYX-420B-1) | YuChai YC4DK80 58KW |
| (Dust collection system as standard equipment) | |
| Matching Air Compressor | |
| Working Pressure | 0.7~1.5 Mpa |
| F.A.D | 7~13 m3/min |
| Diesel Screw Compressor Model | 141SCY-15/158SCY-17 |
| Electric Screw Compressor Model | 90SDY-14.5/132SDY-17/18 |
