MININGWELL Separated DTH drill rig drilling rig is used for open pit, mine, quarry, construction etc. And this mine drilling rig is with good integrity, environmental protection and energy saving,high degree of automation, drilling effect is good, convenient operation,flexible, driving safety, etc.

MWYX-420 seprated DTH drilling rig is equipped with a dual-motor rotary head and a rotary speed-adjustable multi-way valve. The rotary torque can be 2200N.m, which meets the needs of φ76 drill pipe and 130 hole diameter.

The rotation speed can reach up to 150 rpm, which meets the needs of some customers for high-speed drilling in soft rock formations. At the same time, the 420 series seprated DTH drilling rig comes standard with engineering crawlers and plunger motors. It adds a leveling function, improves the equipment’s climbing and off-road performance, and can adapt to complex terrain conditions. Vertical holes can be drilled for slopes to meet the needs of different working conditions.

MWYX-430 seprated DTH drilling rig has an optional maximum rotation torque of 7000N.m and is suitable for pit foundation anchor rods, root canals, and large-diameter twist drill pipe operations. The high-pressure oil pump drives all high-pressure components, making the product suitable for various hole diameters and working conditions. The super-strength, full-featured design and high-level configuration are deeply recognized by the majority of users.

MWXY series drilling rigs have two products, namely MWYX423 and MWYX453, which are aimed at 90-115mm aperture and 115-138mm aperture respectively. This series of products is an all-in-one DTH drilling rig with very high cost performance.

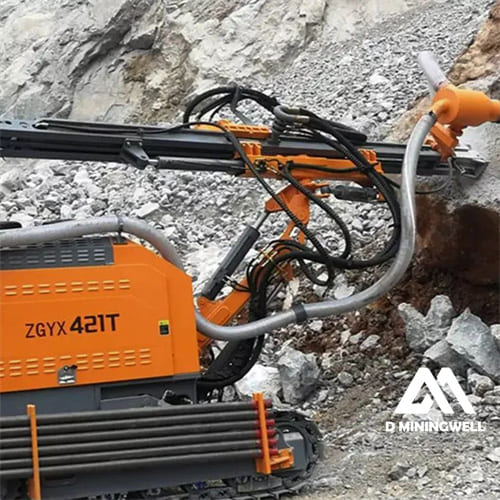

MWYX-421 Integrated DTH Drill Rig is powered by Yuchai YC6J220 and is equipped with a 12/15 screw air compressor. Can meet 90-115 mm aperture.

MWYX-421 Integrated DTH Drill Rig is powered by Yuchai YC6J220 and is equipped with a 12/15 screw air compressor. Can meet 90-115 mm aperture.

MWYX-452 Integrated DTH Drill Rig is powered by Yuchai YC6A260L-T301 and is equipped with a 16/17 screw air compressor. Can meet 90-130mm aperture.

dth drill rig widely used in mining, construction, quarrying, and exploration activities for drilling blastholes, foundation holes, anchors, geothermal wells, etc.

MWYX-420 seprated DTH drilling rig is equipped with a dual-motor rotary head and a rotary speed-adjustable multi-way valve. The rotary torque can be 2200N.m, which meets the needs of φ76 drill pipe and 130 hole diameter.

The rotation speed can reach up to 150 rpm, which meets the needs of some customers for high-speed drilling in soft rock formations. At the same time, the 420 series seprated DTH drilling rig comes standard with engineering crawlers and plunger motors. It adds a leveling function, improves the equipment’s climbing and off-road performance, and can adapt to complex terrain conditions. Vertical holes can be drilled for slopes to meet the needs of different working conditions.
