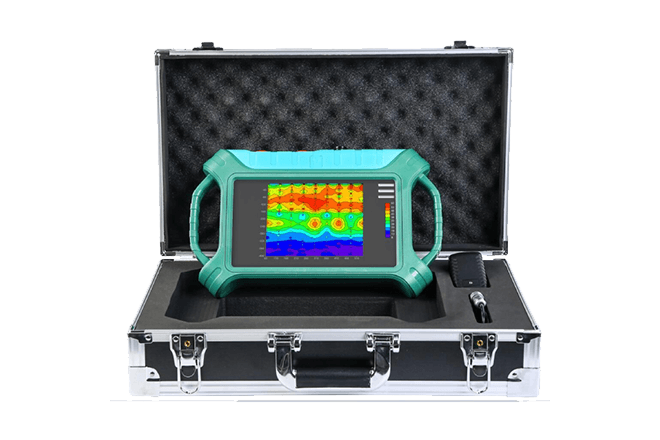

Underground water detector

Brand Name: D miningwell
Minimum Order Quantity: 1 set
Packaging Details: Standard Export Packing
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Western Union

The research and development of the DMiningwell groundwater detector began in 1973 and has undergone 49 years of iterative upgrades. It is mainly used to determine the location, depth and water volume of groundwater and other related information to guide drilling and water intake operations and improve the success rate of wells. Regional hydrological detailed survey and census.

Inquiry Now

Send Email

Product Introduction

Show details

Technical data

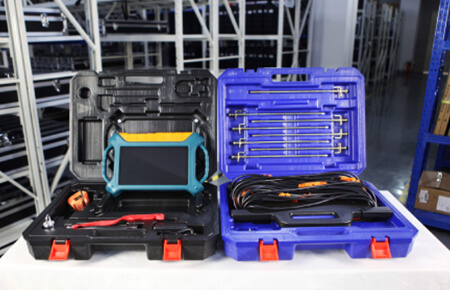

Packaging Details

Related cases

Product Introduction

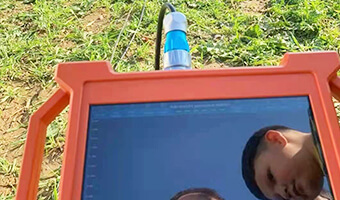

Automatic imaging
●10.1 inch touch screen operation
●Learn to operate in five minutes

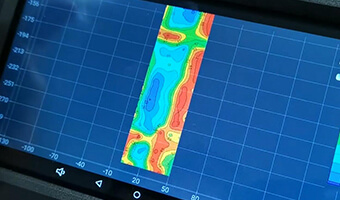

●Real-time 2D, 3D and curve images

Accurate and stable
●Solve the error of single channel multiple movement measurement.
●More than 10 channels are measured almost at the same time.
●Accuracy increased by more than 50%.
●Efficiency increased by 6 times

Adjustable depth
●Choose the depth you need
●Provide a variety of depths for users to choose from within the maximum depth range.

Three screen intercommunication
●Instrument screen,mobile phone screen,computer screen intercommunication.

Intelligent and flexible
●1-30 channels optional and can be equipped with electromagnetic probe for TT probe measurement mode.

Perfect after-sales
●Report by computer Expert online data analysis

Patented technology
●Obtained multiple invention patents
●Patent No.:ZL201310205318.9;ZL 201110454869.X;ZL201320054153.5;ZL201320303919.9
●Won the recognition of Shanghai High-tech Achievement Transformation Project

Show details

Technical data

Technical Parameters	100S	200S	300S	400S	600S	800S	1200S	2000S	3000S

Detect Depth (m)	0-100	0-200	0-300	0-400	0-600	0-800	0-1200	0-2000	0-3000

Measuring Mode(Intelligent frequency select)	20 frequencies	40 frequencies	60 frequencies	80 frequencies

Resolution	2mv	1mv	0.5mv	0.2mv	0.1mv	0.1mv	0.01mv
Repetitive Error	±5%±2 bit	±3%±2 bit	±2%±2 bit	±2%±2 bit	±1%±1 bit	±1%±1 bit	±1%±0.5 bit
A/D Swith	16 bit 1Msps			24 bit 1 Msps
Power frequency	>80dB
Data Storage	Mobile phone or tablet PC (touching LCD 5-10.1''
Display	Blue tooth 4.0
Mainframe Power	DC7.4V 3400mAh lithium battery			DC7.4V 6800mAh lithium battery
Mainframe Power Consumption	160mA	230mA	230mA	360mA	360mA	360mA	450mA
Operating Temperature	-10℃-+40℃		-20℃-+60℃		-40℃-+70℃
Mainframe Size	18.614.88cm
Mainframe Weight	0.8kg			0.9kg
