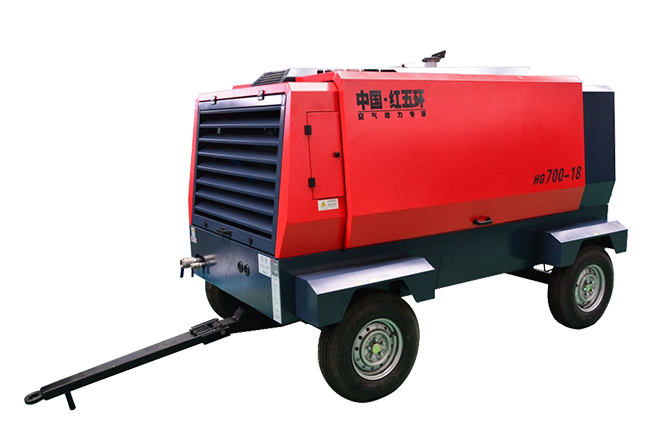

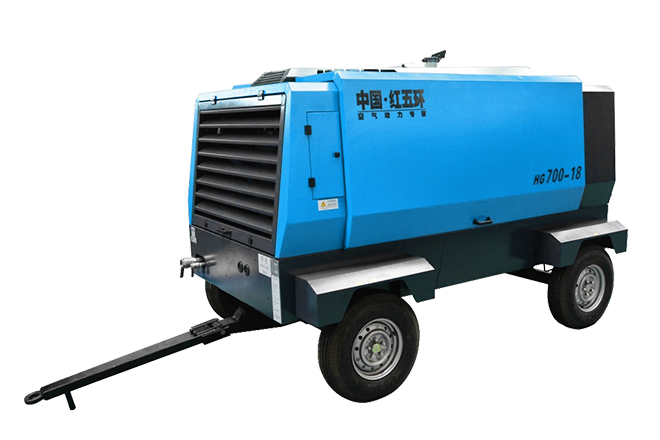

Diesel portable screw air compressor HG Series

Brand Name: D miningwell
Certification: CE, ISO
Minimum Order Quantity: 1 set
Packaging Details: 40HQ-20GP
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

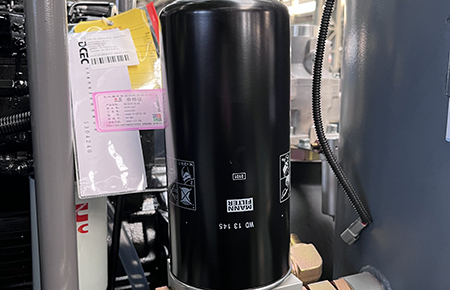

MININGWELL has developed a more reliable and cost-effective single-stage high-pressure mobile screw air compressor through the continuous pursuit of technological innovation and adapting to the direction of market development. With excellent comprehensive performance, it is more widely used in high-efficiency drilling, pipeline pressure testing and related fields. For extreme conditions, the unit is equipped with a heavy-duty fuel filter, a large-capacity battery, and can also be equipped with a fuel liquid heater in cold areas. The cylinder block is heated through the small cooling cycle of the diesel engine, so that you can start worry-free.

Inquiry Now

Send Email

Product Introduction

Show details

Technical data

Application

Related cases

Product Introduction

High Reliability

The main parts adopt domestic well-known enterprises

Industry products with reliable quality. Constant pressure, stable flow: realize continuous automatic adjustment of displacement from 0-100%, high efficiency, energy saving, stable and reliable; economical, pollution-free, and low noise.

Convenience

Small size, light weight, low noise; light and handy, easy to transport, small actual floor space, free in and out under narrow working conditions, reducing transportation costs. The fully open door design ensures a large operating space and is convenient for maintenance and repair. Save time and improve efficiency. No longer worry about unstable flow and insufficient pressure in the process.

Comprehensive Monitoring

The equipment operating status can be fully monitored; the control panel, the equipment operating status is clear at a glance, ensuring the safety of humans and machines.

Adapt to Harsh Environments

This air compressor ensures that it can start perfectly under cold temperature and hypoxia, and meets the load and various harsh working conditions. Solved all the troubles for customers and greatly improved work efficiency

Show details

Technical data

Model	Capacity (m3/min)	Air Pressure (bar)	Engine (kw)	Weight (kg)
HG330-8	8	8	84	1950
HG300-10	7	10	58	1950
HG400-13	10	13	110	2450
HG500-13C	13	13	176	3200
HG700-18C	18	18	194	3280
HG800-20	22	20	194	4200
