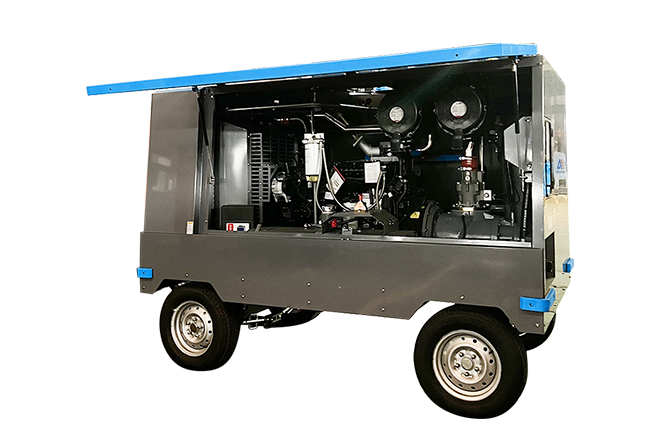

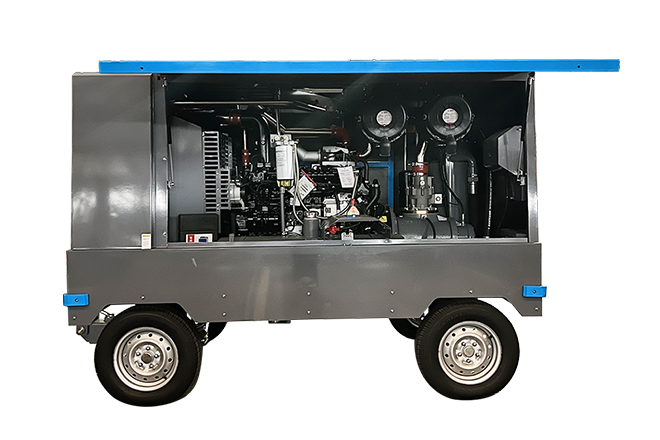

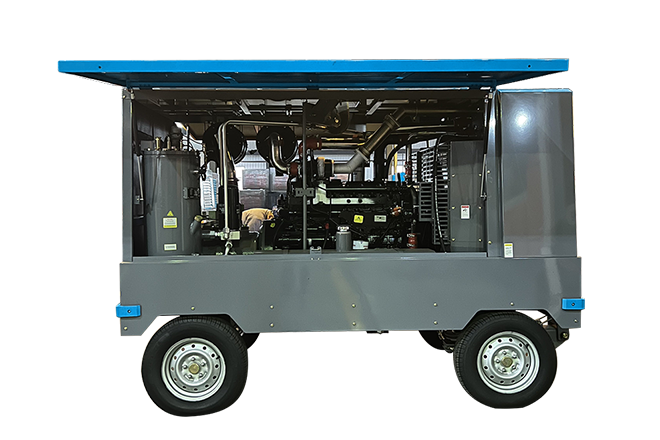

Diesel portable screw air compressor 141SCY-12-15

Product Overview

• Scope of Application: Applicable to down-the-hole drills, anchor bolt drills, photovoltaic drills, rock drills, water well drills, etc. with a maximum aperture of φ115 - 138 mm.
• Performance Optimization: Based on maintaining reliability, sturdiness and durability, the control system is optimized to reduce energy consumption; the air passage is optimized by placing the diesel engine muffler in an independent unit behind the cooler, which improves the cooling performance and reduces the operating noise by 40%; equipped with China III or China IV engines and IP55 motors.

Product Specifications

• Model and Parameters
  • 141SCY - 12 - 15: There are two operation modes. The rated air volume is 18 cubic meters/minute (643 cfm) and 15 cubic meters/minute (535 cfm). The rated pressure is 12 bar and 15 bar. The engine is a Yuchai diesel engine with 140kW. The emission complies with the China III standard. The compression stage is 1. The diesel tank capacity is 230L. The maintenance oil tank is 42 liters. The exhaust oil content is ≤ 3PPM. The exhaust temperature is 80 - 110℃. The noise level is ≤ 85 decibels. The weight is 2520 kg. The type is 4 wheels. The size is 3250×1610×2200 mm.
  • 141SCY - 12 - 15 (Another One): There is one operation mode. The rated air volume is 15 cubic meters/minute (535 cfm). The rated pressure is 15 bar. The engine is a Cummins diesel engine with 142kW. The emission complies with the China III standard. Other parameters are the same as the previous model.
  • 141SCY - 15S: The engine is a Yuchai diesel engine with 140kW. The emission complies with the China IV standard. Other partial parameters are the same as the first model (141SCY - 12 - 15).

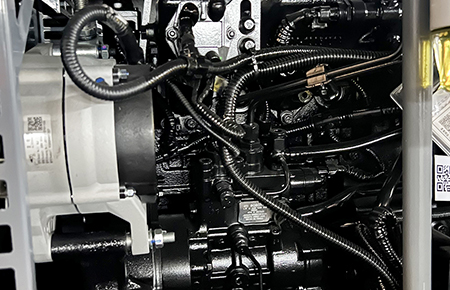

• Core Component: The engine is the core component. The power source is diesel. The lubrication method is lubricating sleeve. It has a silent design (noise ≤ 85 decibels).
