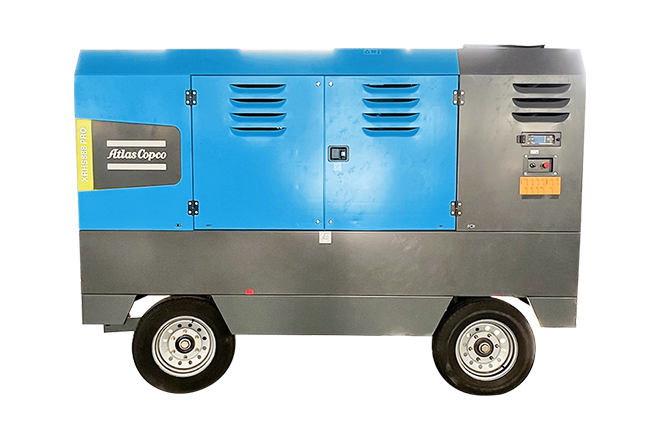

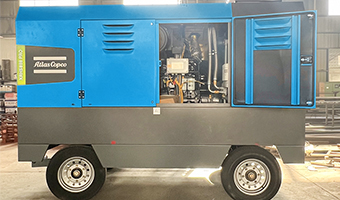

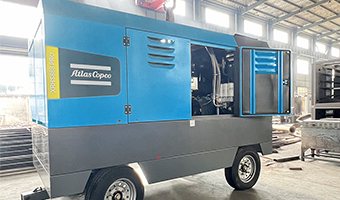

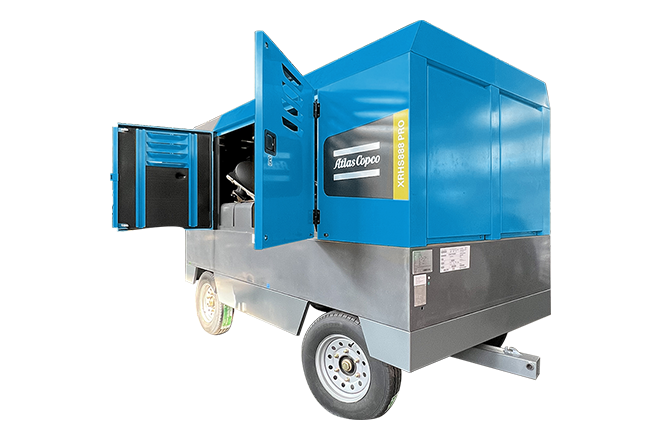

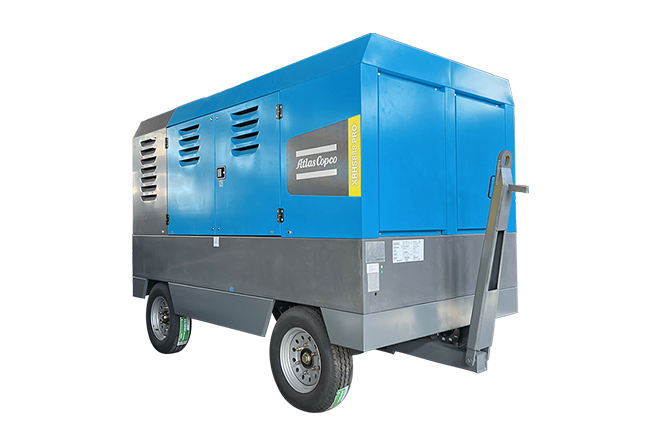

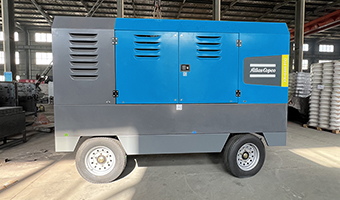

ATLAS COPCO portable air compressor XRHS888

Brand Name: D miningwell
Certification: CE, ISO
Minimum Order Quantity: 1 set

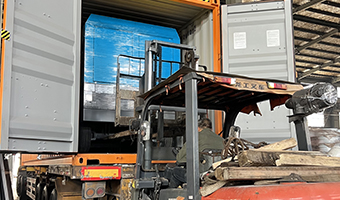

Packaging Details: 40HQ-20GP
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

Atlas Copco is a world-renowned industrial equipment manufacturer with extensive influence and outstanding technical strength in the fields of compressed air technology, vacuum technology, industrial tools and assembly systems.Atlas Copco XRHS888 is a high-performance device, which may be a compressor or related industrial equipment, suitable for a variety of industrial and engineering application scenarios.
Share:
Product Introduction

Mobile air compressors

Forward thinking for compressed air on the move

The essential companion for companies that need to take the tools to perform their work with them – wherever they go. Towed and transported by vehicles across the globe, our range of air compressors is ready to go, and ready to move – when you are. Developed in conjunction with our customers, you can be assured of the most compact size and balanced design coupled with superior levels of efficiency. Plus, many of our models also come with the legendary HardHat® cover!

Small air compressors: below 36 kW

1.9-7.6 m3/min - 7-12 bar

Middle size air compressors 37 - 195 kW

C range air compressors: XA (T,H,V) 156 - 236 C (11.5-24.2 m3/min / 7-20 bar)

C range mobile air compressor

Size 2 low pressure air compressors

OEM solutions

Booster and drillair

8 - 127 m3/min - 52-346 bar

Electric mobile compressors: 25 m³/min / 900 cfm

Electric compressor china

1.Compact

Our business name is Portable Energy, so ease of maneuverability is something you can take for granted with our compressor range.

2.Performance

Innovation should be simple, and customer driven. Our compressors are easy to use, so you might not notice their advanced technology.

3.Customized

You want your compressor to meet your specific requirements. That is exactly why we allow you to customize your compressor with the widest range of options and features.

4.Fit for the harshest conditions
Thanks to a heavy-duty chassis and IP65 protection

5.Compact and flexible
Unparalleled high resale value
Thanks for the design for long-term usage

6.Easy maintenance
Low energy consumption and high performance
Atlas Copco's patented screw design has been tested and proven. The unique gear profile ensures the lowest energy consumption to provide continuous and adequate pressure and efficient flow.

7.Intuitive controls

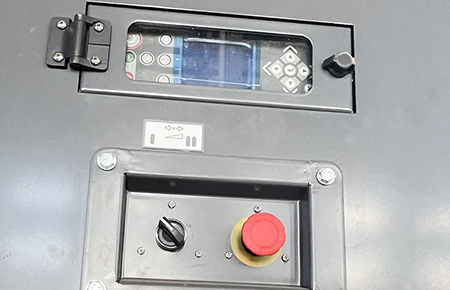

The new Xc2003 intelligent controller with 3.5-inch color display; allows you to check all parameters at a glance. It is a simple control interface, multi-language display.



Show details
Technical data

ATLAS COPCO portable air compressor technical data

Compressor Data XRHS888(Box frame)
Free Air Delivery @ Normal Working Pressure 857cfm to 964cfm
Normal Working Pressure 23Bar to 18Bar
Air Receiver Capacity 89L
Outlet Valve Configuration 1 x 2” G, 1x 3/4” G
Nominal working condition Inlet pressure 1bar,Humidity0%,Temp20 °C
Sound Pressure Level (ISO2125) 80dB(A)
Maximum Ambient Temperature at sea level 50 °C
Diesel Engine Data Cummins  QSL8.9-C360
Horsepower Developed @ Rated Speed 264kW
Cylinders 6
Fuel Tank Capacity 420L
Engine Coolant Capacity 58L
Engine Oil Capacity 21L
Maximum Loaded Speed 1900 / 1700RPM
Dimensions Standard Towing Speed 20 km/h
Length 3666mm ( within towbar )
Width 2140mm
Height 2225 mm
Weight ( filled with oil & coolant , Initial fuel ) 4585 kg
