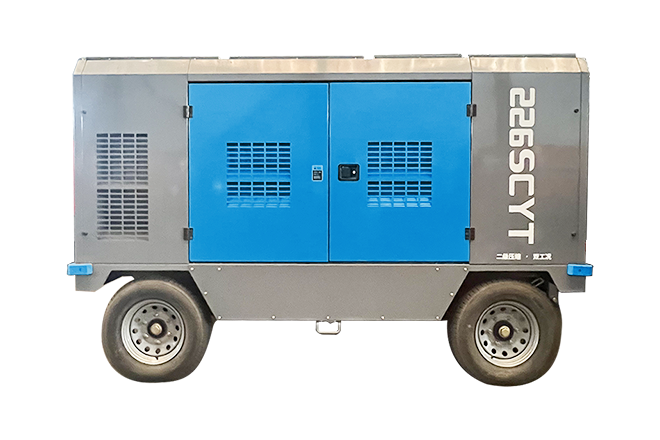

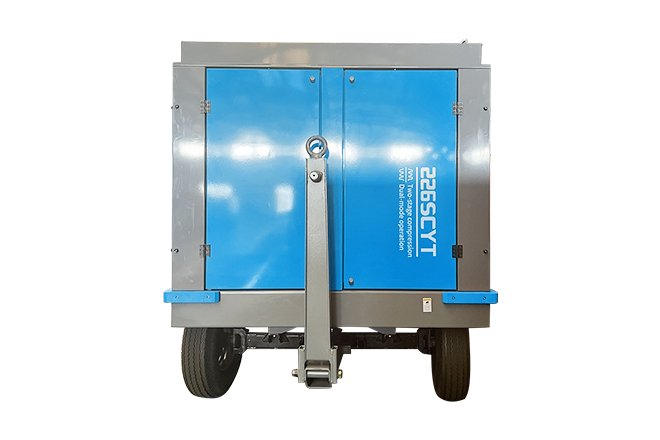

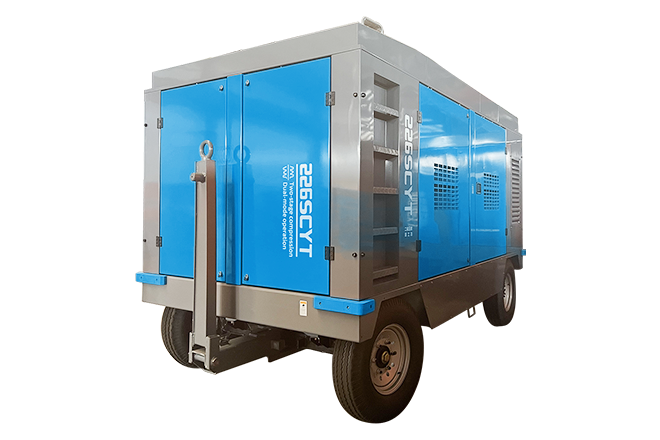

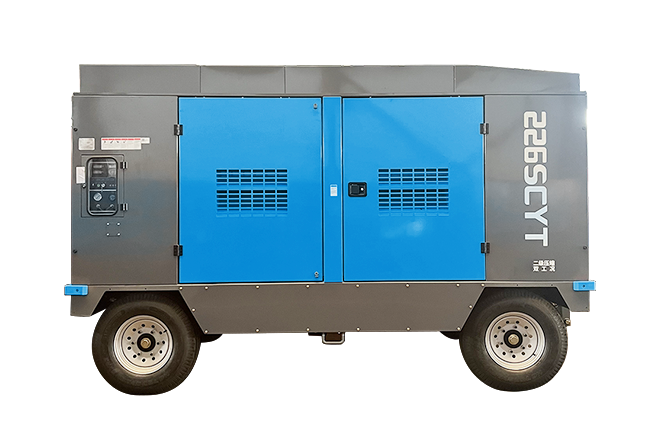

Electric portable screw air compressor 226SCYT

Brand Name: D miningwell
Certification: CE, ISO
Minimum Order Quantity: 1 set
Packaging Details: 40HQ-20GP
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

1.This series primarily used with water well and geothermal project required ф80-138 mm drill rigs and various other air source requirement; 2.Reliable and durable with optimized control system for drastic drop of energy consumption 3.Optimized new design with diesel engine muffler behind the cooler end independent unit for higher cooling efficiency and 40% lower noise reduction; 4.All new designed air inlet valve and optimized air control system with less control parts and less breakdown possibilities for engine to easily start at idle 5.All with EU3A compatible engines.

Inquiry Now

Send Email

Product Introduction

Technical data

Application

Related cases

Product Introduction

Product Upgrade Features
1.Full series product optimized for stronger frame and better towing protection and safety; stronger roof loading capabilities to meet customer load carry needs with rubber protection strips.
2.All pressure pipes are connected with steel tubes,it has excellent sealing and protect rubber from prevent aging,never wear and has attractive appearance.
3.With Patent designed safety air filter unit and stainless steel air inlet pipes for guaranteed dust filter ability and better protection against dirty air due to rubber hose damage.
4.All new designed cooler with independent modular unit and secured by structural component with cushion pad without any pressure points, effectively eliminating cooler damage by shroud deformation;independent damaged unit replacement made easy without removing the cooler assembly.
5.Diesel portable compressors all with international brand name controller with optimized interface for only 3 switches to operate, power, on and off。 Automatic preheating, loading and unloading process, pressure control and engine fuel injection,eliminating high pressure stop and oil outburst. Controller with water and moisture proof.
6.Easy access to all maintenance parts with document and tool box for better management of tools, records and safer for machine operation.
7.Electrical portable machine with breaker and power switch easy to access and protected for convenience and safety.
8.New designed protected cooler for higher efficiency and better safety protection. Full body sound absorbent cotton and rear car silencer designed to make operate noise reduce 40% less than normal products.

Technical data

螺杆式空气压缩机 Screw Air Compressor

产品型号 Model	226SCYT-18
公称容积流量 Volume	20/24m3/min	额定排气压力 Rated Pressure	2.2/1.8MPa
功率 Power	250kW	整机重量 Weight	4700kg
外形尺寸 Dimension	1180X2080X2510(L×W×H)mm
输入比功率 Input Specific Power	kW/(m³/min)
出厂日期 Date	2024 年 1 0月 Year Month	出厂编号 Factory No	BDAJ0001
