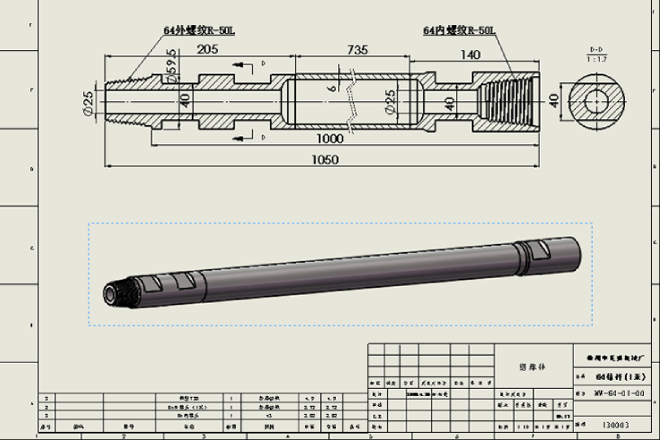

Friction welding drill rod(DTH) 64mm

Brand Name: D miningwell
Minimum Order Quantity: 1 set
Packaging Details: Standard Export Packing
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Western Union

Friction welded drill pipes can be used with DTH drills, water well drills, HDD drills and other equipment. It is an indispensable drilling tool in rock drilling.
Share:
Product Introduction

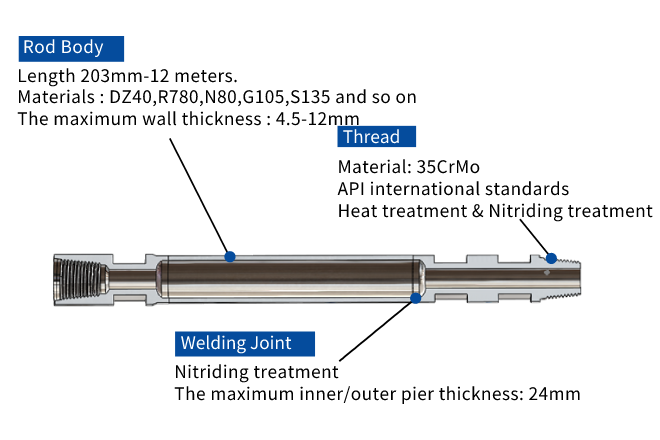

D Miningwell equips all rock drilling equipment with high-quality friction welded drill rods. The threads, rod bodies and welded joints of the drill pipes have been rigorously processed.

Thread: We can produce all threads that comply with API international standards, and guarantee precision processing. The thread material is 35CrMo, and it has undergone high-quality heat treatment and nitriding treatment to ensure the hardness and service life of the thread.

Rod body: We can supply drill rods with diameters of 42mm-203mm, and the maximum length can be made up to 12 meters. We choose DZ40, R780, G105, S135 and other rod materials according to the needs of different customers and the use scenarios of drill rods, and the wall thickness can be 4.5mm-12mm.

Welding joint: Each drill pipe has undergone a pier thickening process, and the maximum inner/outer pier thickness can be up to 24mm, which increases the friction welding area and ensures the stability of the welding joint.



Show details
High Quality Steel
Heat Treatment Technology
Strict Quality Control
Technical data
Model Diameter (mm) Thickness(mm) Thickening type Length(mm) Thread Board shank slot
1 76.0 5-8mm IU 1000/ 1500/ 2000/ 2500/ 3000/ 4000/ 5000/ 6000 2 3/8 API REG Double buckle
Single buckle
2 89.0 6-9.35mm IU 1000/ 1500/ 2000/ 2500/ 3000/ 4000/ 5000/ 6000 2 3/8 IF Double buckle
Single buckle
3 102.0 7-8.38mm IU/IEU 1500/ 2000/ 2500/ 3000/ 4000/ 5000/ 6000 2 7/8 IF 3 1/2 REG Double buckle
Single buckle
4 114.0 6-9.35mm IU 1500/ 2000/ 2500/ 3000/ 4000/ 5000/ 6000 2 7/8 IF 3 1/2 IF/REG Double buckle
Single buckle
5 127.0 9mm IU 1500/ 2000/ 2500/ 3000/ 4000/ 5000/ 6000 3 1/2 IF Double buckle
Single buckle
6 140.0 8-12mm IU 3000/ 4500/ 5000/ 6000 4 1/2 REG or 4FH Double buckle
Single buckle
Factory Workshop
