MF rod

Brand Name: D miningwell
Minimum Order Quantity: 1 set
Packaging Details: Standard Export Packing
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Western Union

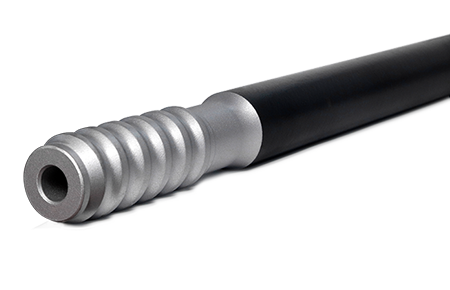

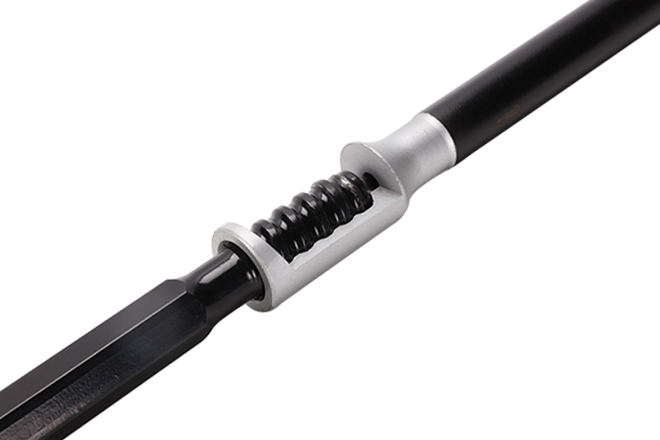

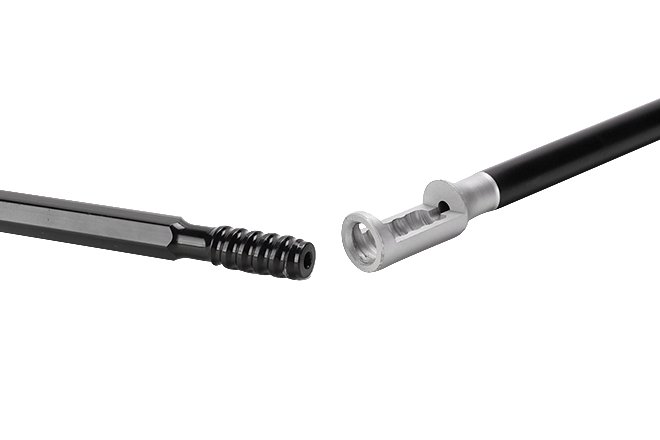

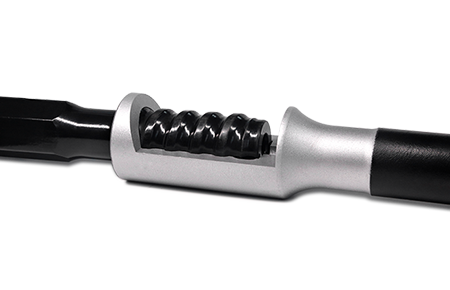

Male/Female (M/F) rod, Speed rod
●Thread Sizes: R32, T38, T45, T51 ●Rod Diameters: Round 32mm, Round 39mm, Round 46mm, Round 52mm ●Effective Lengths: 915mm to 6,100mm Top Hammer Drill Rod is mainly used in underground mining and bench drilling

Product Introduction

Show details

Technical data

Application

Related cases

Product Introduction

Extension Rod(MM Rod)
Thread Sizes: R22, R25, R28, R32, R35, R38, T38, T45, T51
Rod Diameters: Round 32mm, Round 39mm, Round 46mm, Round 52mm, Hex 22mm, Hex 25mm, Hex 28mm, Hex 32mm, Hex 35mm
Effective Lengths: 600mm to 6,400mm

Male/Female (M/F) rod, Speed rod
Thread Sizes: R32, T38, T45, T51
Rod Diameters: Round 32mm, Round 39mm, Round 46mm, Round 52mm
Effective Lengths: 915mm to 6,100mm

Drifting & Tunneling Rods
Thread Sizes: R22, R25, R28, R32, R38, T38
Rod Diameters: Round 32mm, Round 39mm, Hex 25mm, Hex 28mm, Hex 32mm, Hex 35mm
Effective Lengths: 2,100mm to 6,400mm

Show details

Technical data

Technical Parameters
Product Name	Rod size	Specification	Length	Rod type
R25 Rod	Round25	R25-R25-R25	2430	M/M	Extension rod
R25 Rod	Round28	R25-R28-R25	1350	M/M	Extension rod
R32 Rod	Hex25	R32-H25-R25	2900	M/M	Extension rod
	Hex28	R32-H28-R28	2435	M/M	Extension rod
	Hex28	R32-H28-R28	2435	M/F	Speed rod
	Hex32	R32-H32-R25	2742	M/M	Extension rod
	Hex32	R32-H32-R25	2742	M/F	Speed rod
	R32	R32-R32-R32	1525	M/M	Extension rod
R38 Rod	Hex32	R38-H32-R32	3100	M/M	Extension rod
	Hex35	R38-H35-R32	1350	F/F	Extension rod
		R38-H35-R32	2435	M/M	Extension rod
		R38-H35-R32	2435	M/F	Speed rod
		R38-H35-R32	4270	M/M	Extension rod
		R38-H35-R32	4270	M/F	Speed rod
		R38-H35-R32	4880	M/M	Extension rod
		R38-H35-R32	4880	M/F	Speed rod
T38 Rod	Hex32	T38-H32-R32	4305	M/M	Extension rod
	Hex32	T38-H32-R32	4305	F/M	Speed rod
	R39	T38-R39-T38	1220	M/F	Speed rod
		T38-R39-T38	1525	M/F	Speed rod
		T38-R39-T38	3050	M/M	Extension rod
		T38-R39-T38	3050	M/F	Speed rod
		T38-R39-T38	3660	M/F	Speed rod
		T38-R39-T38	4260	M/F	Speed rod
	Hex35	T38-H35-R32	4260	M/F	Speed rod
		T38-H35-R32	4260	M/M	Extension rod
		T38-H35-R32	3700	M/M	Extension rod
		T38-H35-R32	3700	M/F	Speed rod
		T38-H35-R32	4305	M/M	Extension rod
		T38-H35-R32	4305	M/F	Speed rod
T45 Rod	Round46	T45-R46-T45	1525	M/F	Speed rod
		T45-R46-T45	3050	M/M	Extension rod
		T45-R46-T45	3660	M/F	Speed rod
		T45-R46-T45	4270	F/M	Speed rod
T51 Rod	Round52	T51-R52-T51	3660	M/M	Extension rod
		T51-R52-T51	3660	M/F	Speed rod
		T51-R52-T51	4270	M/F	Speed rod
