pneumatic Mini rock drilling machine MW100

Mini rock drilling machine MW series

Brand Name: D miningwell
Minimum Order Quantity: 1 set
Packaging Details: Standard Export Packing
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Western Union

The D Miningwell MW series of Small Borehole Drilling Rigs have two types of pneumatic and electric，meet the needs of all kinds of construction situation. drilling rig machine is widely used in mines, transportations, defense,water conservancy,rock engineer,especiaaly rugged terrain,which has low center of gravity,easy to fold and to move.

Inquiry Now

Send Email

Product Description

D Miningwell MW series

Technical data

Application

Related cases

Product Description

Features:
1.Configuration of the power, meet the needs of all kinds of construction situation.
2.Using hydraulic technology, energy saving efficiency.
3.Original bracket tooth plate positioning, structure design, stable and reliable.
4.Good detachability, suitable for all kinds of original landform operation.
5. The high-torque rotor reducer ensures reliable operation under strong vibration or heavy load.
6. The propulsion system is equipped with an overflow valve to adjust the propulsion force to ensure excellent performance
7. Lower initial investment and good economic benefit.
8. Hydraulic propulsion, there are two types of pneumatic and electric.

D Miningwell MW series

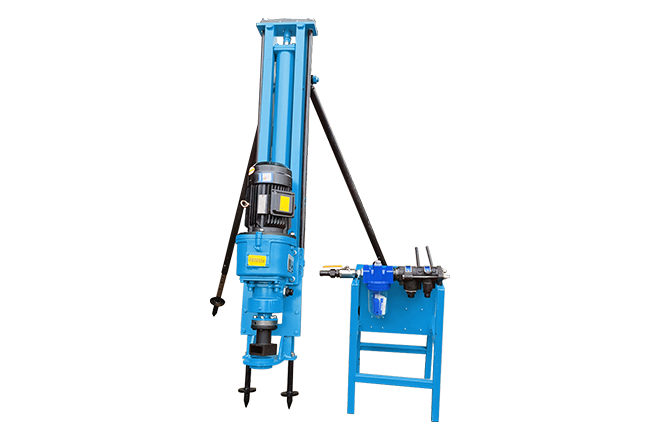

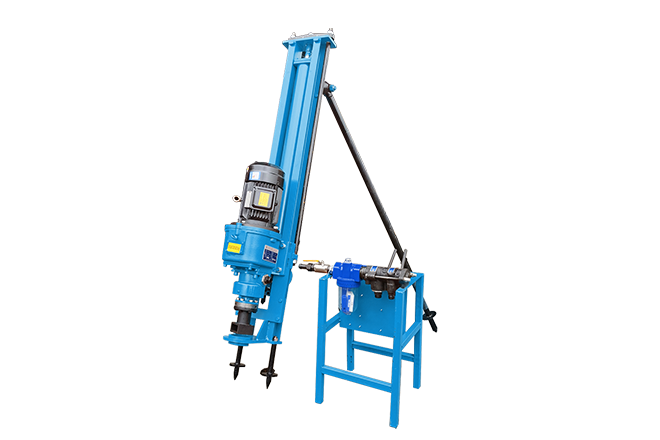

MW70B has an overall weight of 165kg, can drill to a depth of 15 meters, and is equipped with a 42mm drill pipe.

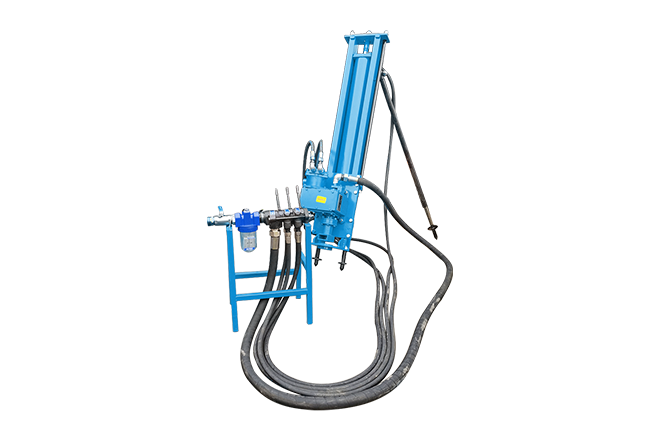

MW100 has an overall weight of 240kg, there are two types of pneumatic and electric，It can drill to a depth of 25 meters and is equipped with a 60mm drill pipe.

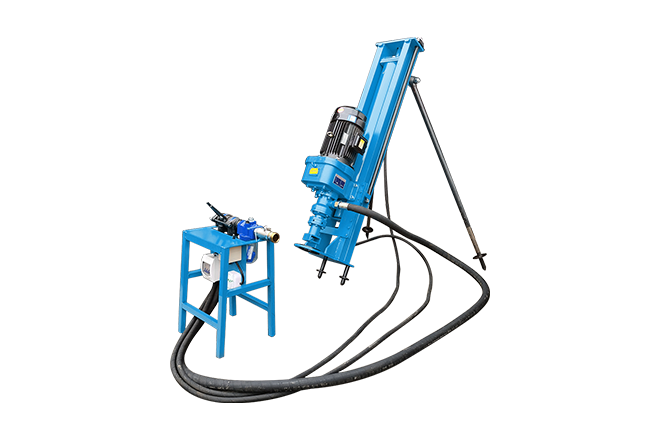

MW120B has an overall weight of 650kg, can drill to a depth of 35 meters, and is equipped with a 60mm drill pipe.

Technical data

Technical Parameters
Model	MW70B	MW100B	MW100	MW120B
Drilling Diameter (mm)	76-130	83-130	83-130	83-130
Apply Rock	≥20	≥20	≥20	≥20
Drilling Depth (m)	15	25	25	35
Drilling Rotate Speed (r/min)	0-93	0-93	0-93	0-78
Working Air Pressure (Mpa)	0.5-0.7	0.5-0.7	0.5-0.7	0.5-0.7
Drilling Rod OD (mm)	42	60	60	60
Drilling Rod Length (mm)	1025	1025	1025	1025
Weight (kg)	165	240	240	650
