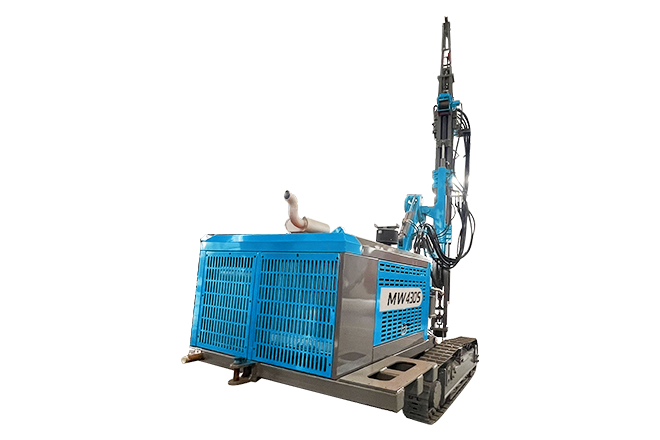

DMiningwell Seperate DTH drill rig 430S

Brand Name: D miningwell
Minimum Order Quantity: 1 set
Packaging Details: 40HQ-20GP
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

Anchor drilling rigs are mainly used for landslide and dangerous rock mass anchoring projects, especially suitable for high slope rock mass anchoring projects. In addition, it is also suitable for various construction scenarios such as urban deep foundation pit support, anti-floating anchors and foundation grouting reinforcement engineering holes, blasting holes in blasting projects, high-pressure jet grouting piles, and tunnel pipe shed support holes. By adjusting the power head, the anchoring drilling rig can easily carry out all-round construction to meet a variety of engineering needs.

Product Introduction

DMiningwell 430S product features:

1. This equipment uses a high-torque rotary head design with a torque of up to 8000N.m, which can meet the needs of drilling large holes of φ350;

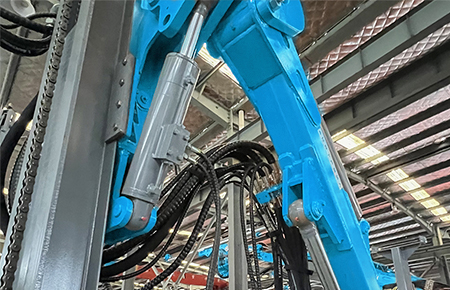

2. Equipped with a hoisting structure to meet the lifting needs of steel cages and other items on the construction site. It increases the working range of the drilling arm and can meet the requirements of multiple working conditions such as vertical holes, front high and low horizontal holes, and side high and low horizontal holes;

3. The propulsion beam has sufficient space for changing poles, and the propulsion system uses a roller chain cylinder to advance, with reliable structure and increased propulsion lifting force;

4. Diesel-electric dual power design, can be switched at any time, flexible and convenient.

Show details

Technical data

ZGYX-430S/435S

型号 Mode 重量 /Weight	430S	435S
	6,870 kg	8,030 kg
外形尺寸(长x宽x高) /Dimensions(LxWxH)	7,300×2,280×3,000 mm	7,300×2,370×2,700 mm
国四动力(标配) /China IVengine (standard)	玉柴Yuchai/73.5 kW
最大工作扭矩 /Rotation torque (MAX)	8,000 N.m
电动机功率 /Electric Motor	55 kW
钻孔孔径 /Drilling hole diameter	110-250 mm
冲击器(标配) /DTH hammer(Standard)	5”寸(inch)
钻杆规格(标配) /Drilling rod(Standard)	76×3,000 mm
柴油箱容积 /Diesel tank volume	105 L
