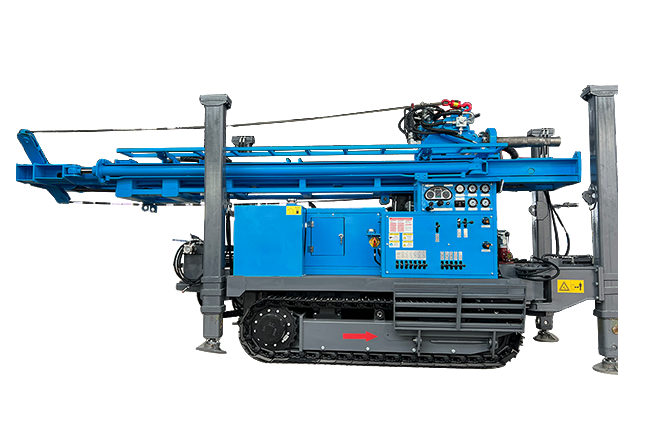

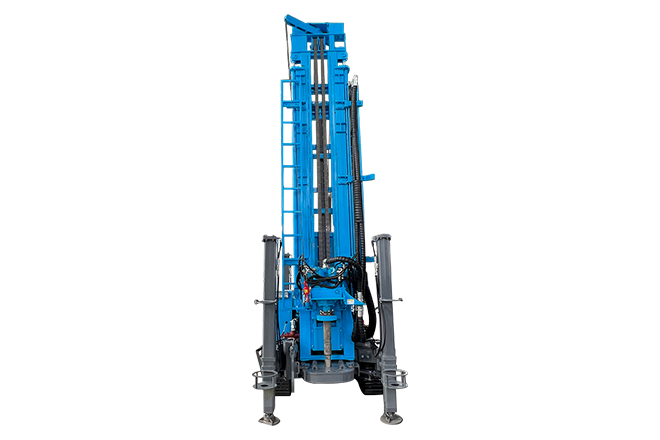

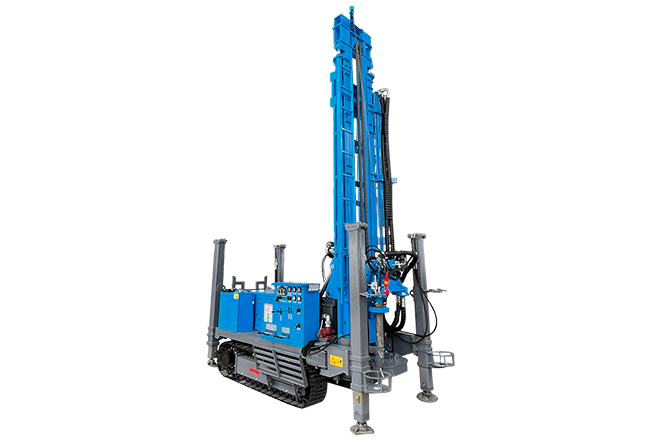

Crawler water well drilling rig 300III

Brand Name: D miningwell
Certification: CE, ISO
Minimum Order Quantity: 1 set
Packaging Details: 40HQ-20GP
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

Crawler water well drilling rigs have a wide range of applications, covering the fields of water resources development (including domestic water well construction, agricultural irrigation wells and industrial water supply), geological exploration (mineral resource exploration, hydrogeological survey and engineering geological survey), and basic engineering construction Fields (pile foundation construction, ground source heat pump system installation and underground pipeline laying) and special environmental applications (mountainous and remote areas, desert and Gobi areas, flood fighting and emergency rescue).
Share:
Product Introduction
The DMiningwell MW300 III crawler water well drilling rig is a powerful and reliable piece of equipment designed for efficient drilling operations. With its advanced features and sturdy construction, it can handle a variety of terrains and drilling challenges.
Advantages of water well drilling rig:
1. Advanced Features:
  • Fast feeding speed of 55m/min and rapid rise speed of 30m/min enhance productivity.
  • Swing speed of 80/160r/min and swing torque of 7000/3500Nm contribute to smooth and efficient drilling operations.
  • Using air pressure of 1.2 - 3.5MPa and air consumption of 16 - 55m/min along with specific drill pipe lengths (3m/6m) and diameters (89/102mm) and one-time advance length of 6.6 ensure optimized drilling performance.
2. Powerful Performance:
  • With a weight of 7500KG and a diesel power type, it can handle drilling depths up to 350m and a drilling diameter of 350mm, ensuring efficient operations for various construction and water well projects.
  • Rig lifting force of 16T provides strong support for heavy-duty drilling tasks.
3. High Mobility:
  • Removable design and crawler tracks (assumed based on the type) allow it to access different construction worksites easily, even in challenging terrains.
4. Quality Assurance:
  • Originating from China, Zhejiang, it comes with a 1-year warranty and machinery test report provided. The warranty of core components like pump, engine, and motor offers added reliability.
5.User-Friendly:
  • Key selling point is its ease of operation, making it accessible for operators of different skill levels.
6.Versatility :
  • Suitable for a wide range of applications including water well drilling in construction works.
  • Video outgoing-inspection provided for quality assurance before deployment.
Show details
Hydraulic Motor
Opreation Floor
Control Valve
Technical data
item value
Applicable Industries Construction works
Showroom Location None
Place of Origin China
  Zhejiang
Weight 7200KG
Warranty 1 Year
Marketing Type Ordinary Product
Machinery Test Report Provided
Video outgoing-inspection Provided
Warranty of core components Other
Core Components Pump, Engine, Motor
Key Selling Points Easy to Operate
Drilling Diameter 325mm
Drilling Depth Max.300m
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Brand Name Dminingwell
Use Water Well
Voltage 220v
Dimension(L*W*H) 5780*1800*2400mm
Mobility Removable
Using air pressure 1.2-3.5MPa
Air consumption 16-55m/min
One-time advance length 6.6
Drill pipe length 3m/6m
Drill pipe diamete 89/102mm
Rig lifting force 15T
Fast feeding speed 55m/min
Rapld rise spoed 30m/min
Swing speed 80/160r/min
Swing torque 6500/3250Nm
