Crawler water well drilling rig MW-400SⅤ

Product Introduction

DMiningwell water well drilling rig is an efficient top drive, fully hydraulic, multifunctional drilling rig widely used for
drilling water wells, monitoring wells, precipitation wells, rescue wells, hot spring wells, ground source air
conditioning holes, coalbed methane, natural gas, oil extraction and other projects. This drilling rig can use
compressed air down the hole drilling or mud drilling in various formations in high-temperature, high-altitude,
and plateau areas, and has a high drilling speed in rocks with a Proctor hardness of f=4-20.
The lifting of the drilling rig frame, drilling rod unloading, rotation and feeding, support legs, hoisting, walking and
other actions of this series of drilling rigs are all implemented by hydraulic systems, greatly reducing labor intensity,
improving construction efficiency and engineering quality. The telescopic tower type drillingrig reduces the length
of the drilling frame by twice and can directly lower a 6-meter drill rod or casing, further shortening the drilling
assistance time. The updated rotary control panel can be used for different working conditions.
MW-330SV-MW-1000SV drilling rig features:
1. Advanced technology
2.Excellent quality
3. High operating efficiency
4. Strong adaptability
5. Reliable and durable

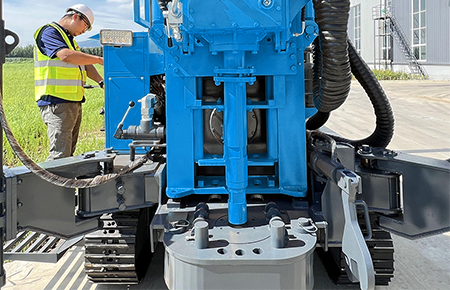

Show details

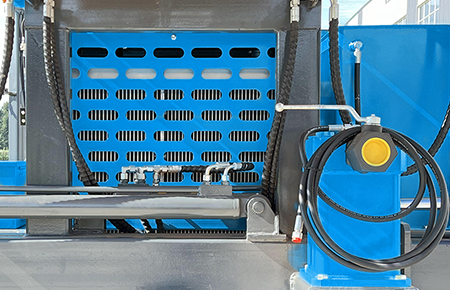

Hydraulic Motor

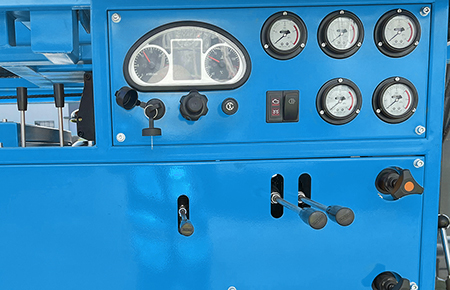

Opreation Floor

Control Valve

Technical data

技术参数 Technical parameters	单位 Unit	MW-330SV	MW-400QSV	MW-400SV	MW-500SV	MW-600SV	MW-650SV (中心提升)	MW-750SV (中心提升)	MW-1000/ MW-1000SV
最大钻孔深度 Max drilling depth	M	330	400	400	500	600	650	750	1000
钻孔直径 Drilling diameter	mm	105-305	105-325	105-325	105-400	105-400	105-450	105-450	105-800
推荐工作风压 Air pressure	Mpa	1.2-3.5	1.2-3.5	1.2-3.5	1.2-3.5	1.2-3.5	1.6-6	1.6-6	1.6-8
推荐耗气量 Air consumption	m³/min	16-55	16-55	16-55	16-55	16-55	16-75	16-75	16-96
钻杆长度 Drill pipe length	m	6	6	6	6	6	6	6	7
推荐钻杆直径 Drill pipe diameter	mm	89	89/102	89/102	89/102	89/102	89/102	89/102	114
轴压力 Axial pressure	T	3	4	4	6	6	6	6	8
提升力 Lifting force	T	18	22	22	30	35	38	40	51/52
快升速度 Fast lifting speed	m/min	30	29	29	29	33	28	31	30
快进速度 Fast feeding speed	m/min	60	56	56	48	55	60	65	61
最大回转扭矩 Max rotary torque	Nm	8000/ 4000	8000/ 4000	8000/ 4000	11000/ 5500	12000/ 6000	13000/6500 或15000/7500	13000/6500 或15000/7500	26000/ 13000
最大回转转速 Max rotary speed	r/min	60/120	75/150	75/150	75/150	90/180	95/190	95/190	70/140
大副卷扬提升力 Big auxiliary winch lifting force	T	-	-	-	-	-	-	-	-
小副卷扬提升力 Small auxiliary winch lifting force	T	1.5	1.5	1.5	1.5	2.5	2.5	2.5	2.5
支腿行程 Jacks stroke	m	1.45	1.6	1.6	1.6	1.6	1.6	1.6	1.7
进尺效率 Drilling efficiency	m/h	10-35	10-35	10-35	10-35	10-35	10-35	10-35	10-35
行走速度 Moving speed	Km/h	2.5	3	2.5	3	3	3	3	5
爬坡能力 Uphill angle	坡度（slope）	21 °	21 °	21 °	21 °	21 °	21 °	21 °	21 °
机重 Weight of the rig	T	8.2	8.6	9.8	10.6	12.5	13	14	17.8
外形尺寸 Dimension	m	*6.321.72.39*	*6.251.72.39*	*6.261.852.43*	*6.521.852.51*	6.732.1 2.63	*6.732.1** *2.75	*6.642.25** *2.67	*7.32.25** *2.75
发动机 Engine	/	玉柴动力(Yuchai Power ) 91KW	潍柴 (Weichai) 103KW	玉柴股份(Yuchai Stock）92KW	玉柴股份（Yuchai Stock）110KW	康明斯(Cummins）132KW	康明斯(Cummins) 132KW	潍柴(Weichai ) 176KW	康明斯(Cummins) 194KW
适应条件 Working condition	松散层及基岩 Unconsolidated formation and stone head
钻进方式 Drilling method	顶驱液压回转及推进,潜孔冲击器或泥浆钻进 Top drive hydraulic rotary and pushing hammer or mud drilling
配冲击器 Matched DTH hammer	中、高风压系列 Medium and high air pressure series
可选装的配件 Optional accessories	泥浆泵,离心泵,发电机,泡沫泵 Mud pump,Centrifugal pump,Generator,foam pump
