Crawler water well drilling rig MW7/360BIX

Brand Name: D miningwell
Certification: CE, ISO
Minimum Order Quantity: 1 set
Packaging Details: 40HQ-20GP
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

The DMiningwell MW series crawler-type deep well drilling rigs are specialized energy extraction equipment independently developed to meet the needs of the shallow resource extraction industry. They are mainly applied to various deep hole drilling operations such as shallow oil and gas wells, geothermal wells, mine wells, industrial and agricultural water wells. This drilling rig can adopt multiple construction techniques such as air DTH hammer drilling and mud drilling, and it has the advantages of fast drilling speed and good hole-forming effect.
Share:
Product Introduction
Product Introduction:
1.Comfortable and Convenient Operating System
  • Integrated console with a compact structure and easy operation.
  • Dual-pump confluence rotation system controlled by a single lever, providing a comfortable operating experience.
  • Hoisting-priority operating system that reduces the time for auxiliary operations.
2.Mature and Reliable Top Drive Power Head
  • Power head development technology with over 20 years of maturity, reliable in use and with a long service life.
  • Patented double-isolation rotary joint that meets the requirements of air and mud drilling processes.
3.Large-amplitude Telescopic Drill Mast
  • Large-amplitude drill mast structure, ensuring higher construction stability.
  • Adjustable-gap telescopic drill mast that meets the needs of large-stroke casing-following construction and has a short transportation size.
4.Value-added Upgrade Space
  • Optional configurations such as generators, centrifugal pumps, and foam pumps are available to meet users' value-added requirements.
5.Safety-conscious and Thoughtful Detail Designs
  • Desert Storm air filter system that maximally ensures the powerful output of the engine.
  • Safety locking of the mast-erecting cylinder and needling treatment of the air circuit manifold to ensure personal safety during the construction process.
  • Each electrical component is equipped with independent circuit-breaking protection, facilitating maintenance.
6.Powerful and Efficient Hydraulic System
  • Based on the working condition matching of "torque, rotational speed, lifting force, and lifting speed", the flow and pressure of the main pump are precisely configured for high efficiency and energy saving.
  • High-quality hydraulic components from leading domestic and foreign brands are carefully selected, providing powerful driving force.
Show details

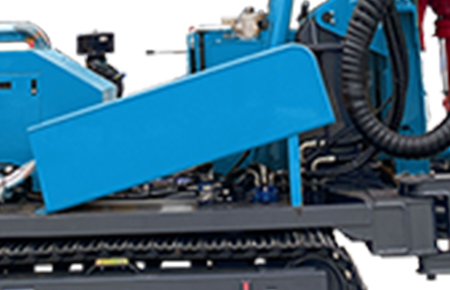

Hydraulic Motor

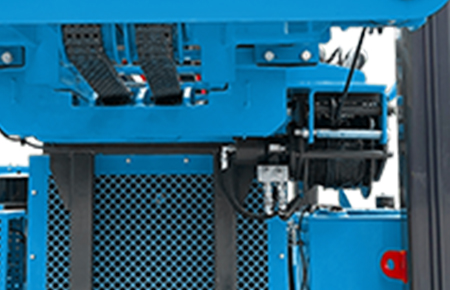

Opreation Floor

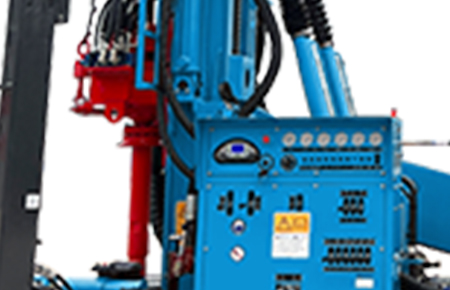

Control Valve
Technical data
MW7/360BIX Water Well Drilling Rig Technical Specification
Drilling Capacity                  Drilling Depth m 700(φ102)
Maximum Passing Diameter mm φ500
Feeding System Maximum Lifting Force kN 360
Maximum Feeding Force kN 120
                Fast Lifting Speed m/min 32
Fast Lowering Speed m/min 60
                         Stroke mm 7000
Top Drive Power Head                 Maximum Torque Nm 14500/7250
Maximum Rotational Speed r/min 75/150
            Spindle Bore Diameter mm φ55
Engine                           Model / YC6J210-T300
Rated Power kW 154
Rated Rotational Speed r/min 2000
Tool Hoist Lifting Force kN 30
Foam Pump (Optional) Maximum Displacement L/min 35(Optional)
Maximum Pressure MPa 4(Optional)
Manifold Bore Diameter mm φ55
Maximum Pressure MPa
Generator (Optional) Power KW 24
Voltage v 400
Frequency Hz 50
Chassis Maximum Travel Speed km/h 3
Maximum Gradient % 39
Maximum Ground Clearance of Crawler mm 1300
Maximum Inner Width of Front Outrigger mm 2900
Maximum Inner Width of Rear Outrigger mm 2700
Working Dimensions mm 5100×3200×9800
Transportation Dimensions mm 6100×2100×2690
Overall Weight t 12

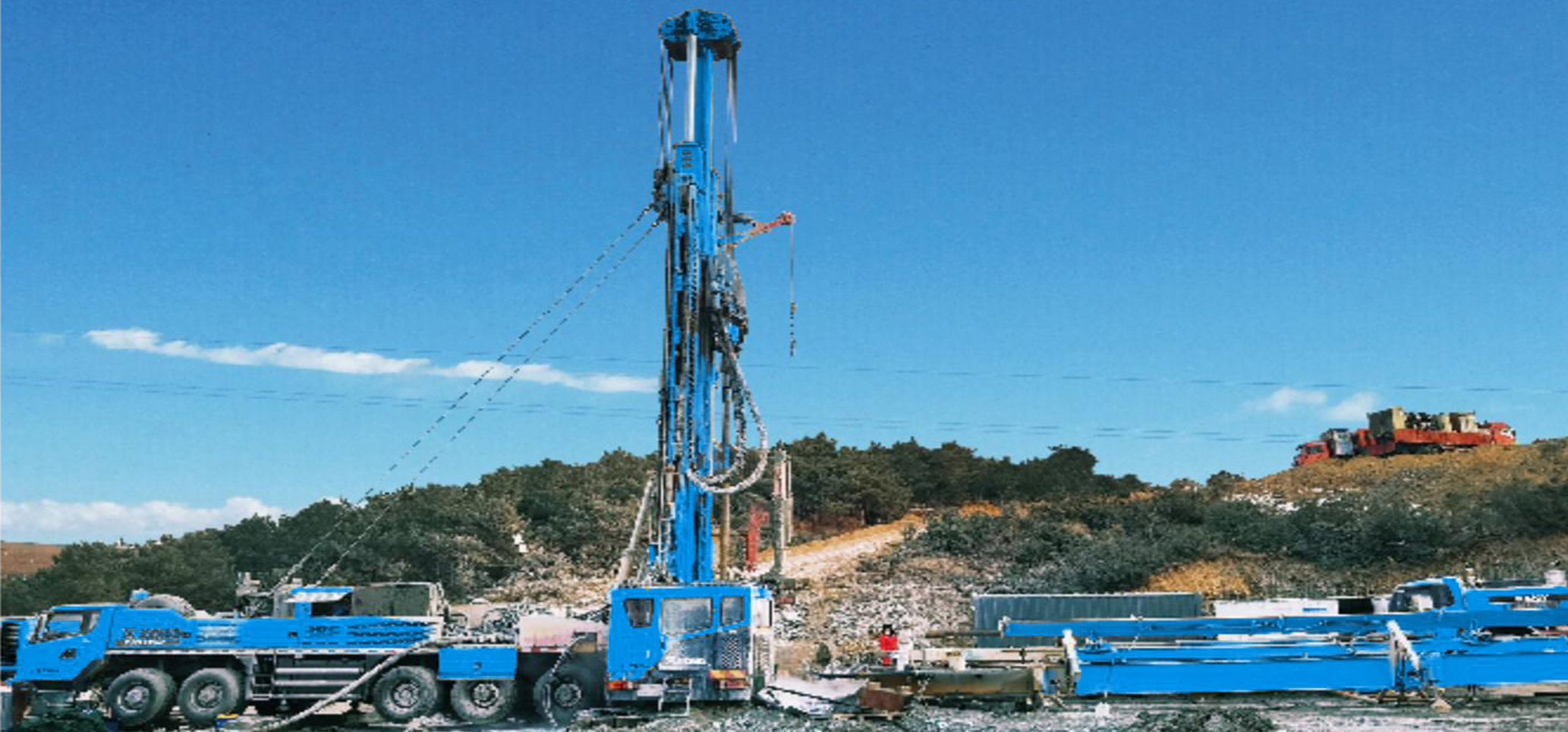

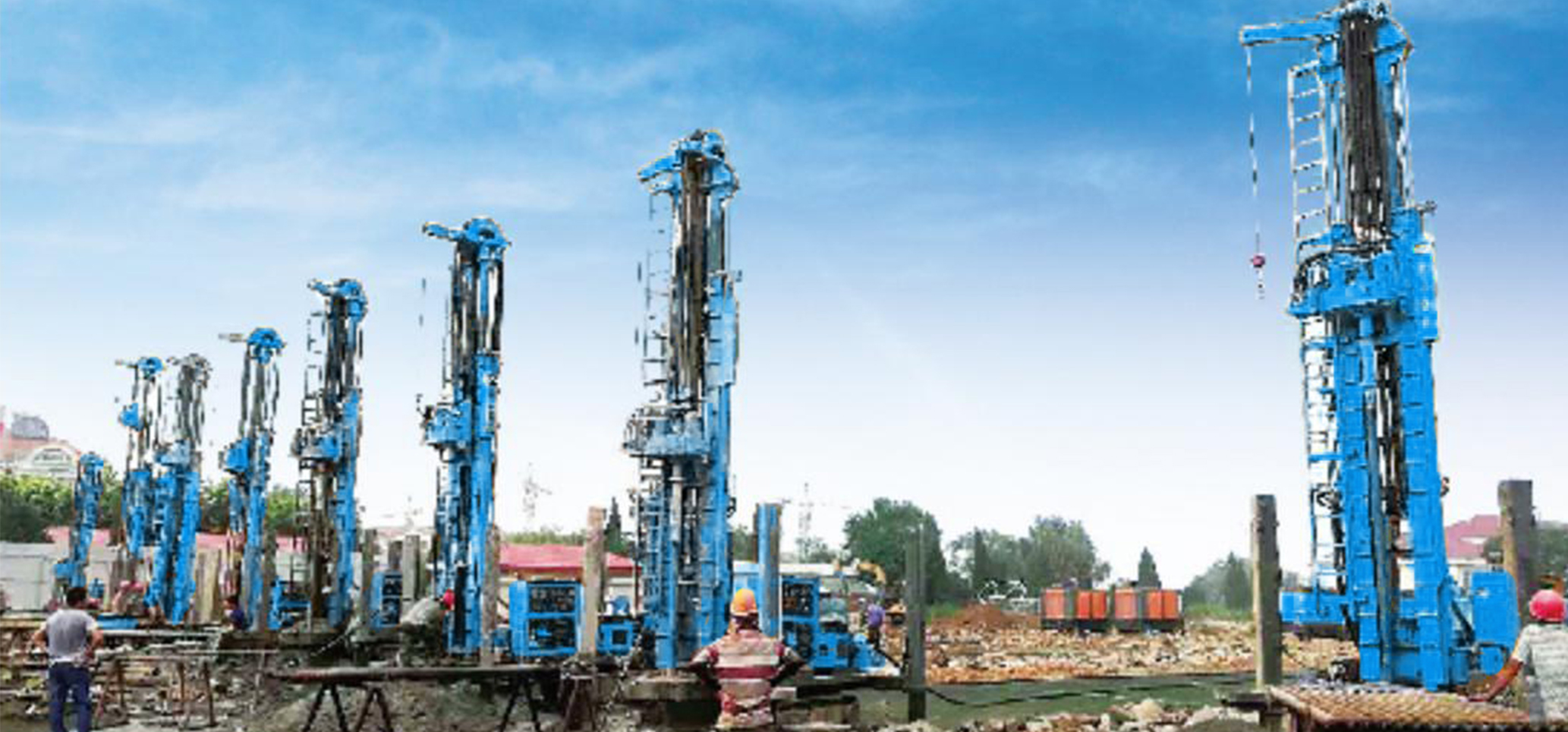

Application
