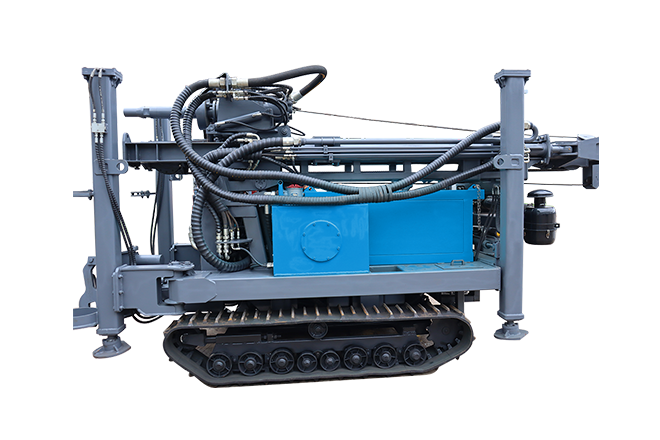

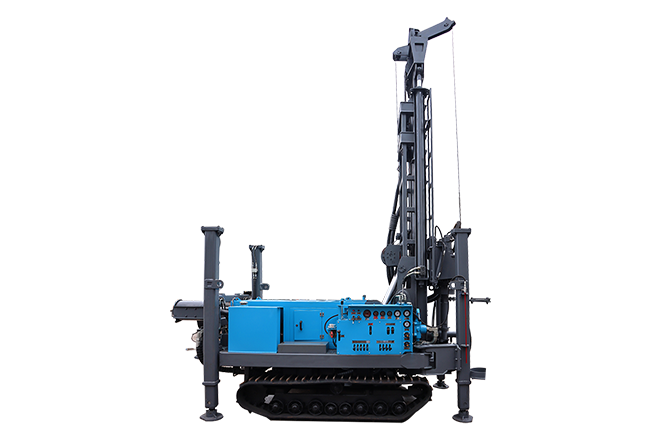

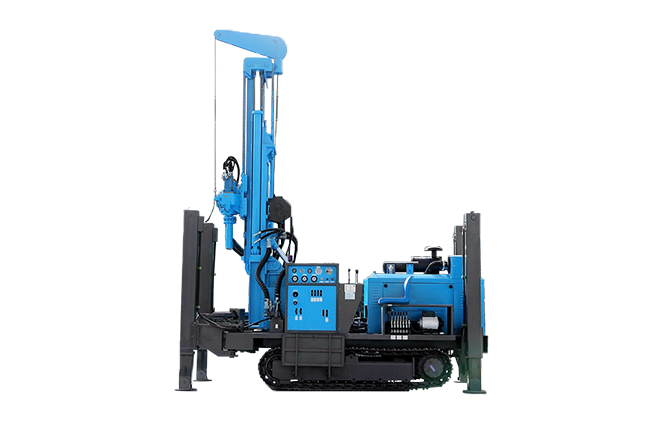

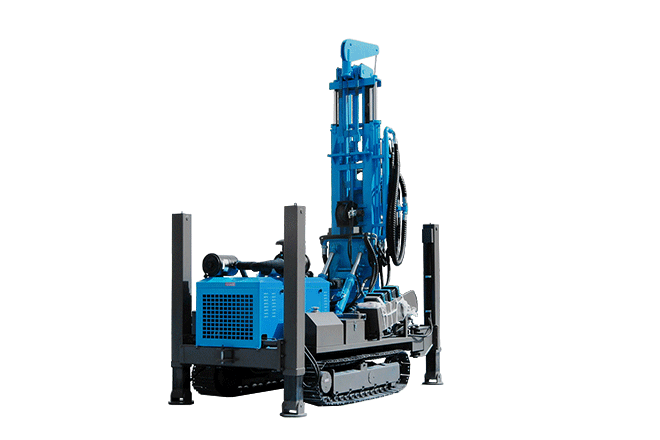

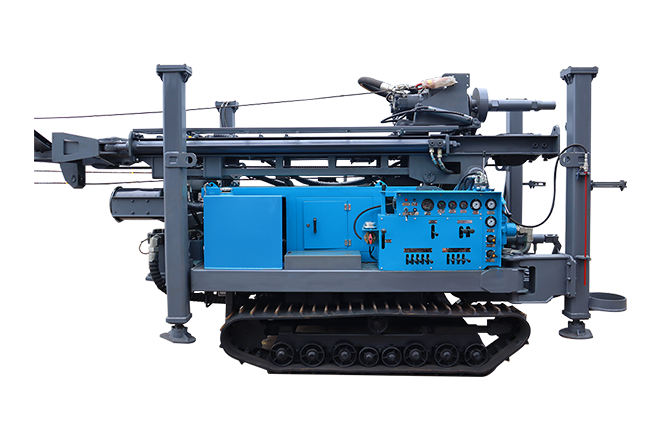

Crawler water well drilling rig MW300

Product Introduction

This machine adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic
cylinders for the hydraulic control system. The brand diesel is protected by 2 levels air filtration systems and also can directly use the clean air from the air compressor.

Advantages of MW300:
1. Engine: adopts the famous brand Guangxi Yuchai 85Kw turbocharged version
2. Crawler Driving Gear: the designed motor with a speed reduction gearbox prolongs the service life

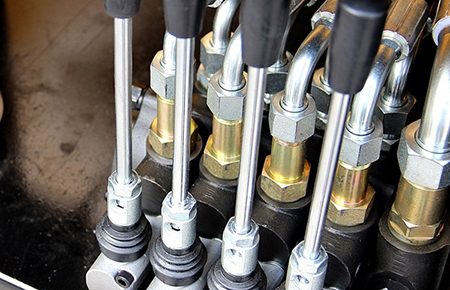

3. Hydraulic Oil Pump: It uses parallel gearbox (which is a patent) to separate oil pump monomer, supply adequate power and distribute reasonable. The hydraulic system adopts unique design, which is easy to maintain and can lower the maintenance cost.
4. Rotary Head Device: integrated casting gearbox , dual motor power, large torque, durable, small maintenance costs
5. Drill Chassis: the professional excavator chassis provides durability and strong load capacity, the wide roller chain plate causes small damage to the concrete pavement

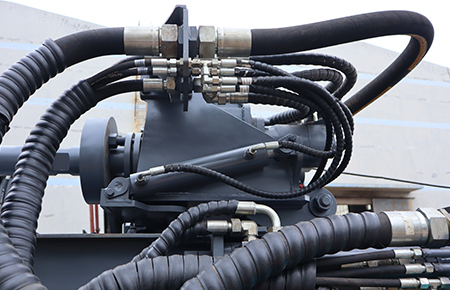

6. Lifting Force: patent designed composite arm with small size yet long stroke, double cylinder lifting, strong lifting capacity. The lift arm is installed with a limiter to protect cylinder and ensure the safety of work. Each hydraulic tubing is covered with a protective shell to effectively extend the service life of pipeline.

Show details

Technical data

Technical Parameters
The weight(T)	7.2	Drill pipe diameter(mm)	76 89 102
The hole diameter(mm)	140-325	Drill pipe length(m)	1.5m 2.0m 3.0m
Drilling depth(m)	300	Rig lifting force(T)	18
One-time advance length(m)	33/4.8	Rapid rise speed(m/min)	22
Walking speed(km/h)	2.5	Fast feeding speed(m/min)	40
Climbing angles(Max.)	30	Width of loading(m)	2.7
(kw) Equipped capacitor	85	Hoisting force of winch(T)	2
(Mpa) Using air pressure	1.7-3.0	Swing torque(N.m)	5700-7500
Air consumption(m3/min)	17-36	Dimension(mm)	4100*2000x2500
Swing speed(rpm)	40-70	Equipped with hammer	Medium and high wind pressure senes
The penetration efficiency(m/h)	15-35	High leg stroke(m)	1.4
The engine brand	Yuchai engine
