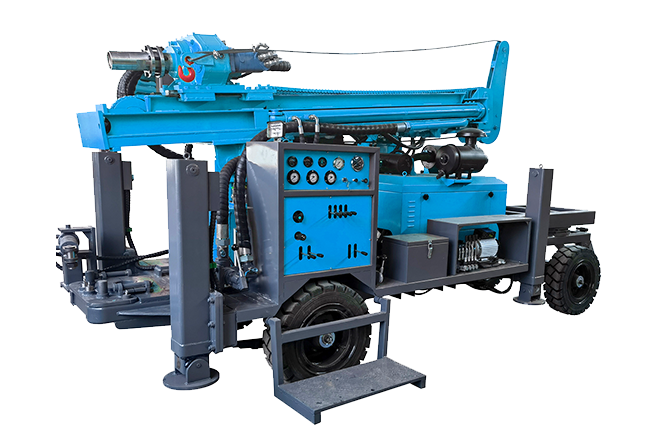

Tralier type water well drilling rig MWL 260

Brand Name: D miningwell
Certification: CE, ISO
Minimum Order Quantity: 1 set
Packaging Details: 40HQ-20GP
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

Tralier type water well drilling rig MWL 260 is a moveable, efficient and multipurpose rock drilling equipment. It has rotary drilling mode and percussive drilling mode with high-pressure air, foam and mud according to different geological conditions.

Inquiry Now

Send Email

Product Introduction

Show details

Technical data

Application

Related cases

Product Introduction

MWL260 trailer--mounted drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells o other exploration boreholes, in particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.

Show details

Technical data

Technical Parameters	MW260
Dimension	410019502600mm
The hole diameter	140-305mm
Drilling depth	260m
One-time advance length	3m
Walking speed	2.5km/h
Climbing angles	30°
Power	Yuchai73kW
Using air pressure	1.7-3.0MPA
Air consumption	17-31m³/min
Drill pipe length	1.5/2/3m
Drill pipe diameter	76mm,89mm
Rig lifting force	15T
Swing speed	45-70rpm
Swing torque	4000-5300N.m
