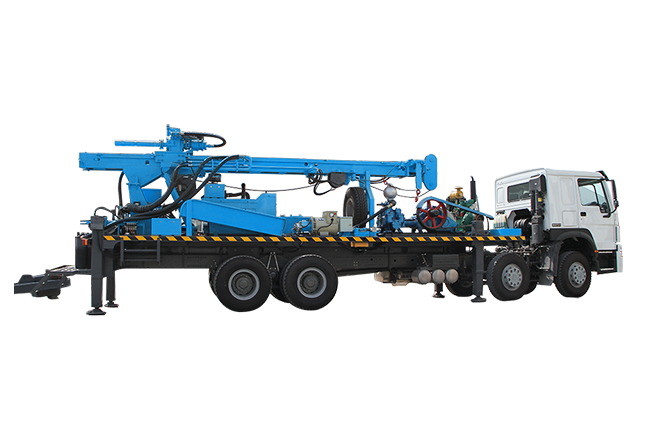

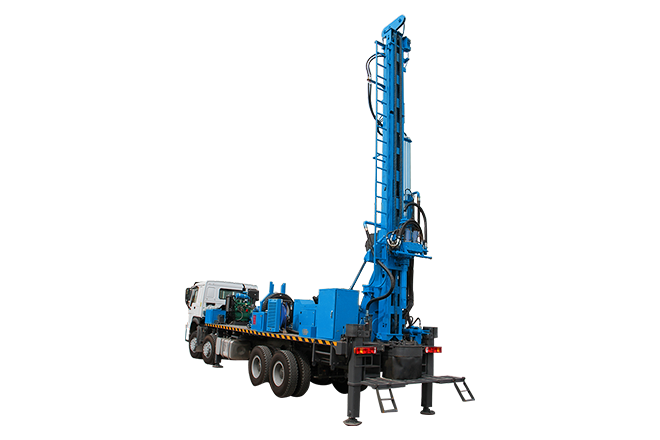

Truck mounted water well drilling rig MWC-500V

Brand Name: D miningwell
Certification: CE, ISO
Minimum Order Quantity: 1 set
Packaging Details: 40FR/Bulk Carrier
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union

DMiningwell MWC series truck mounted water well drilling rig is a fully hydraulic top drive, efficient and multifunctional mechanical equipment, which can be widely used for drilling water wells, geothermal wells, detection wells, precipitation wells, rescue wells, gas layers, natural gas, oil extraction and other projects. This drilling rig can use compressed air down the hole drilling in various formations, and can also be combined with a mud pump to achieve dual use of water and gas. The hydraulic system and key components of the drilling rig are all from top domestic and foreign brands, significantly reducing its failure rate and extending the working life of the drilling rig. The lifting of the drilling rig tower, the unloading of drill rods, the rotation and feeding, the support legs, and the hoisting are all implemented by hydraulic systems, greatly reducing labor intensity

Inquiry Now

Send Email

Product Introduction

Show details

Technical data

Application

Related cases

Product Introduction

Product Details of MWC-500V

Outstanding Performance and Wide Application
- The MWC-500V is a new type of rotary drilling rig with outstanding performance, suitable for various industries such as retail, energy, and mining. It is from Zhejiang, China. The advantage of its place of origin provides a good manufacturing foundation. The whole machine weighs up to 24,000KG and has dimensions of 102.483.15m, providing good stability and operating space

Efficient Power and Drilling Capacity
- Adopting diesel power, the power type is reliable and strong. It has excellent drilling parameters. The drilling diameter range is 105 - 400mm, and the maximum drilling depth can reach 500m. The air pressure is 1.2 - 3.5, the air consumption is between 16 - 55. The drill pipe length is available in 3m and 6m. The drill pipe diameter is 89mm or 114mm. The axial pressure reaches 6, the lifting force is 30. The maximum rotating torque can reach 11000/5500 in different modes. The maximum rotating speed is 70/140 rpm. The advancing stroke is 7. The drilling efficiency is between 10 - 35. Whether in soft soil or hard rock formations, it can complete drilling operations efficiently.

Reliable Quality and Guarantee
- The product quality is guaranteed. A one-year warranty period for the whole machine is provided. Core components such as motors, pumps, gears, and gearboxes also enjoy a one-year warranty. And provide mechanical test reports and video outgoing inspections to make customers feel at ease when purchasing and using. The key components are all made of high-quality materials, effectively reducing the failure rate. In terms of mobility, the speed can reach 2.5km/h, which is convenient for transfer between construction sites. This drilling rig takes low maintenance cost as its key selling point. Long-term use can save customers a lot of costs. It is a new type of water well drilling rig that integrates efficiency, reliability, and economy. Whether it is used for water well drilling or drilling work related to energy exploitation, the MWC-500V can complete tasks excellently.

Show details

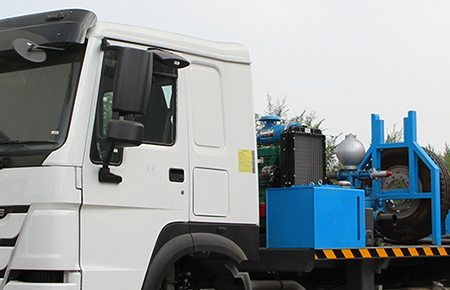

Sino HOWO Truck

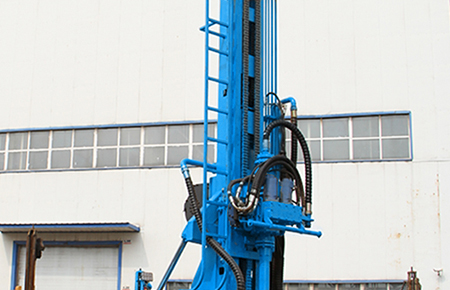

Rotary Head

Swing Joint

Technical data

item	value
Applicable Industries	Retail, Energy & Mining
Showroom Location	None
Place of Origin	China
	Zhejiang
Weight	24000KG
Warranty	1 Year
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Motor, Pump, Other, Gear, Gearbox
Key Selling Points	Low Maintenance Cost
Drilling Diameter	105-400mm
Drilling Depth	Max.500m
Condition	New
Type	Rotary Drilling Rig
Power Type	Diesel
Brand Name	D miningwell
Use	Water Well
Dimension(LWH)	102.483.15m
Mobility	2.5km/h
Air pressure	1.2-3.5
Air consumption	16-55
Drill pipe length	3/6
Drill pipe diameter	89/114
Axial pressure	6
Lifting force	30
Max rotary torque	11000/5500
Max rotary speed	70/140
Advance the itinerary	7
Drilling efficiency	10-35
