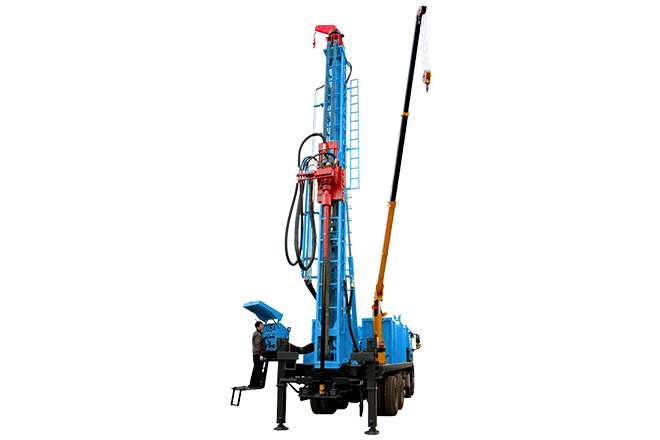

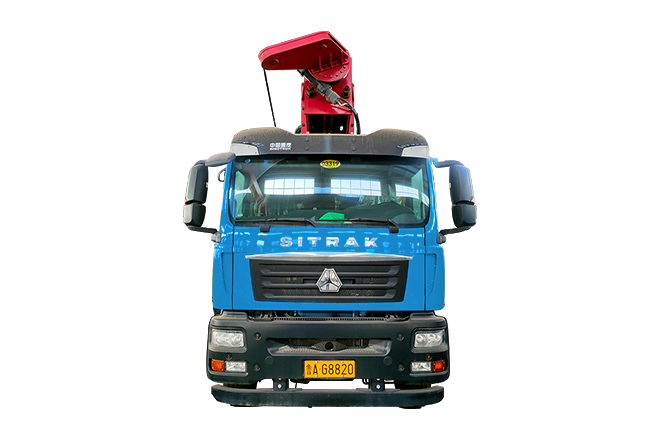

Truck mounted water well drilling rig MWC-1200V

Detailed Explanation of D miningwell High-performance Rotary Drilling Rig

I. Wide Applicability and Reliable Quality Assurance

1. Applicable in Multiple Industries: This D miningwell rotary drilling rig is suitable for various industry fields such as retail, energy and mining. Whether it is basic engineering in retail site construction, or operations like energy extraction, mine drilling and well drilling, it can display powerful performance. Its wide applicability results from in-depth understanding and targeted design of different industry needs, capable of meeting construction requirements under various complex working conditions.
2. High-quality Origin and Guarantee: Produced in Zhejiang, China, relying on the local mature manufacturing industry system. It undergoes strict quality control from parts production to complete machine assembly. The whole machine weighs 32000KG, with dimensions of 11.52.253.2m. It has a stable structure, providing a solid foundation for operation in various complex environments. Meanwhile, as a new product, it enjoys a one-year warranty for the whole machine and one-year warranties for core components (motor, pump, gear, gearbox, etc.), and provides mechanical test reports and video outgoing inspections to make customers feel assured about product quality.

II. Excellent Performance Parameters

1. Superb Drilling Capacity: The drilling diameter range is 105 - 900MM, and the maximum drilling depth can reach 2000m. Whether it is shallow well construction, ultra-deep water well drilling or large-scale engineering hole operations, it can be completed efficiently. Different drilling diameter options can adapt to various engineering needs and handle complex geological conditions with ease. The air pressure is between 1.65 - 8, and the air consumption is 16 - 120, providing stable power for the drilling process. The drill pipe diameter is 127mm, and the lengths of 3m and 6m are available. The axial pressure reaches 13, and the lifting force is 61, ensuring the stable operation of the drill pipe and efficient drilling and lifting operations during the drilling process. The maximum rotation torque is 24000/12000, the maximum rotation speed is 75/150rpm, and the advancing stroke is 7/13, enabling the drilling rig to quickly break rocks and discharge cuttings in different strata. The drilling efficiency is between 10 - 35, greatly accelerating the construction progress.
2. Efficient Power System: It adopts diesel power with strong power, able to adapt to various harsh working environments and terrain conditions. Whether in remote mountainous areas and high-altitude areas in the energy and mining industries or in different scenarios such as retail construction sites, it can operate continuously and stably to ensure the smooth progress of the project.
3. Good Mobility: Although the whole machine is relatively heavy, it still has certain mobility, facilitating transfer between different construction sites, reducing the time cost of equipment transportation and installation, and improving the overall construction efficiency.

III. Advantage of Low Maintenance Cost
