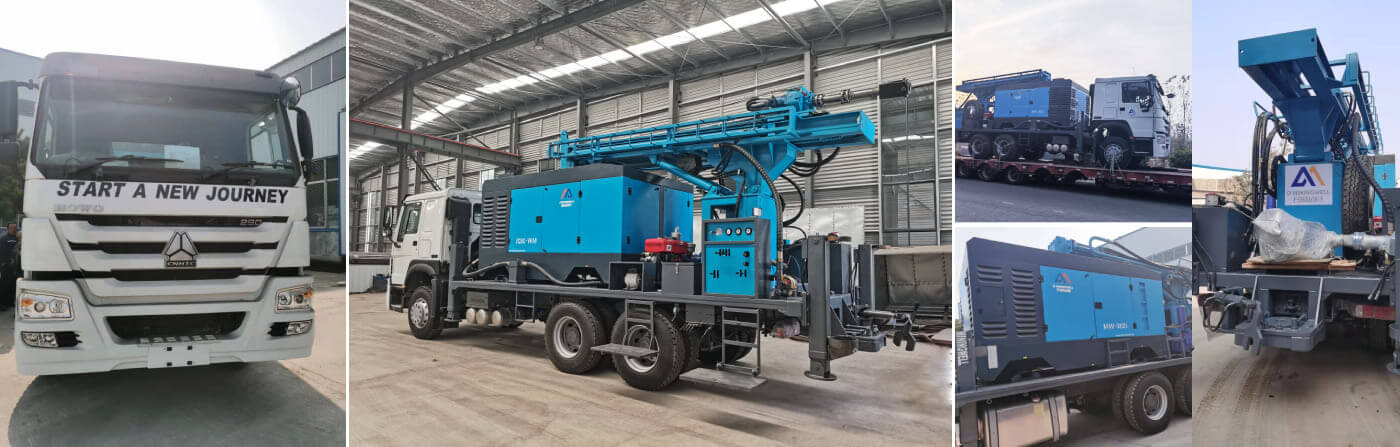

Truck mounted water well drilling rig MWT-600

Product Introduction

MWT series water well drilling rig is a water-air dual-purpose drilling rig produced and developed by our company. The unique rotary head design enables it to be used for high-pressure air compressors and high-pressure mud pumps at the same time. Generally speaking, we will choose a new car chassis and design a drill rig equipped with a PTO system. The drill rig and the car chassis share an engine. We will also load auxiliary tools such as mud pump, electric welding machine, foam pump on the body to ensure that our drilling rig can meet the needs of customers in any situation.

MWT series water well drilling rigs are all customized drilling rigs. We will customize the design of the drilling rig according to your drilling needs and preferences. The customized content includes:
1. The brand and model selection of the car chassis;
2. Model selection of air compressor;
3. Model and selection of mud pump;
4. Drill tower height

Show details

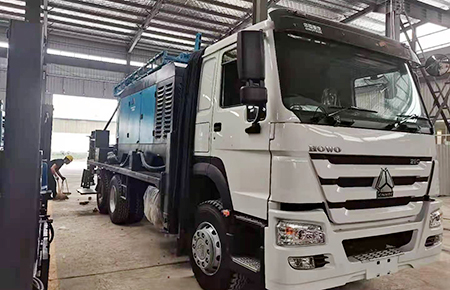

Sino HOWO Truck

Rotary Head

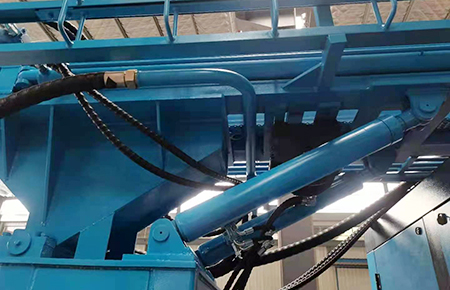

Swing Joint

Technical data

Technical Parameters	MWT-180	MWT-260	MWT-280	MWT-350	MWT-400	MWT-500	MWT-680	MWT-800
Drill depth(m)	180	250	280	350	400	500	680	800
Drill diameter(mm)	140-254	140-254	140-305	140-325	140-350	140-350	140-400	140-400
Equipped Engine	Yuchai 65kW or PTO	Yuchai 70kW or PTO	Yuchai 75kW or PTO	Yuchai 92kW or PTO	DEUTZ 103kW or PTO	Yuchai 118kW or PTO	Cummins 154kW or PTO	Cummins 194kW or PTO
Feed Stroke(m)	3.3	3.3	6.6	6.6	6.6	6.6	6.6	6.6
Drill pipe length(m)	1.5/2.0/3.0	1.5/2.0/3.0	1.5/2.0/3.0/6.0	1.5/2.0/3.0/6.0	1.5/2.0/3.0/6.0	1.5/2.0/3.0/6.0	1.5/2.0/3.0/6.0	1.5/2.0/3.0/6.0
Swing speed(rpm)	45-70	45-70	40-70	40-70	50-135	40-130	45-140	45-140
Swing torque(N.m)	3200-4600	3300-4500	4500-6000	5700-7500	7000-9500	7500-10000	8850-13150	9000-14000
Rig lifting force(T)	12	14	17	18	25	26	30	36

FOCUS ON PRODUCT QUALITY Provide You with Flexible and Eifficient Solution.

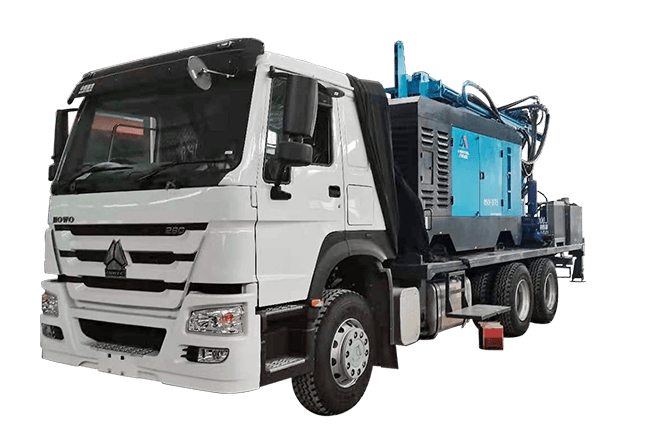

HOWO BRAND TRUCK CHASSIS	DRILL RIG
We use HOWO brand truck chassis in all series,which is convenient for global customers to do after-sales service.	We can add a PTO system to the rig according to the customer's perference, or we can configure a separate engine for the rig.

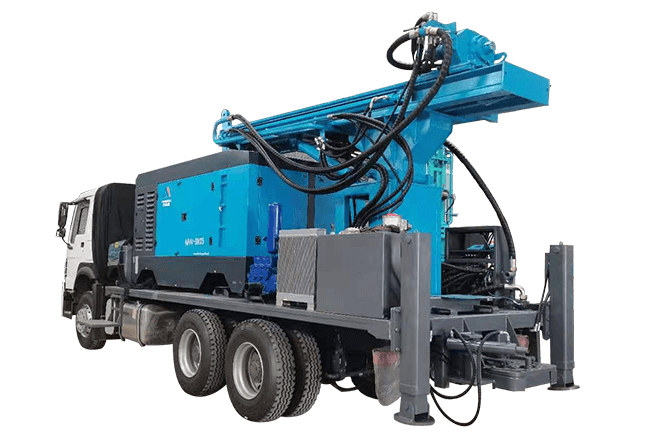

TRUCK-MOUNTED DRILLING RIG BODY	SWIVEL HEAD
Our truck- mounted drilling rig is equipped with a high-pressure screw air compressor and a mud pump at the same time, which can be switched at will under different geological environments and is suitable for all types of drilling projects.	Our According to customer perference, it can be equipped with a large torque mechanical drive slewing head or a large torque full hydraulic slewing head. We can configure up to 8 motors for the hydraulic swivel head to meet the needs of large-disameter drilling.

DRILLING TOWER
We use one-piece welding and forming telescopic drilling tower, using Q345B high temperature and loe temperature resistant materials, and all parts are strengthed by welding. After 30 years of actual use testing, there is no problem
